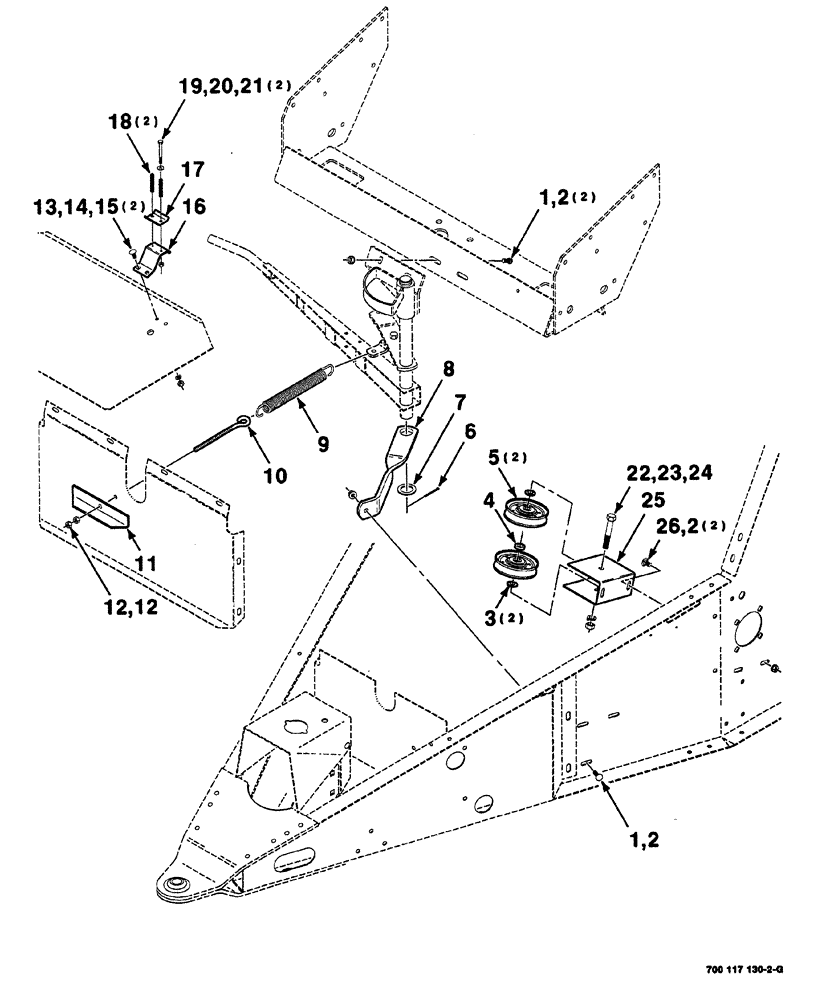

Запчасти Case IH 8420 (06-02) - THREADER CONTROL AND TWINE TENSIONER ASSEMBLY (14) - BALE CHAMBER

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

2

231-5146

FLANGE NUT,3/8"-16

5шт.

3

700101804

SPACER

flat

2шт.

4

6108922

SPACER

1шт.

5

53512

SPARE PART

V-IDLER

2шт.

6

432-1028

COTTER PIN,5/32" x 1 3/4"

1шт.

7

52324

BUSHING

machinery, narrow rim, 1-1/4" x 10 gauge

1шт.

8

700117239

STRAP

support, lower

1шт.

9

758789

COIL SPRING

extension

1шт.

10

766394

CONSOLE

EYEBOLT

1шт.

11

700101721

SUPPORT

stiffner

1шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

425-105

NUT,5/16"-18, G5

2шт.

16

700117237

SUPPORT

tensioner

1шт.

17

6549869

SUPPORT

BRACKET tensioner

1шт.

18

700707677

SPRING

compression

2шт.

19

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

20

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4"

2шт.

21

425-104

NUT,1/4"-20, Cl 5

2шт.

22

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

SCREW hex cap, 1/2"-13 x 3-1/4"

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

700101803

SUPPORT

idler

1шт.

26

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.
