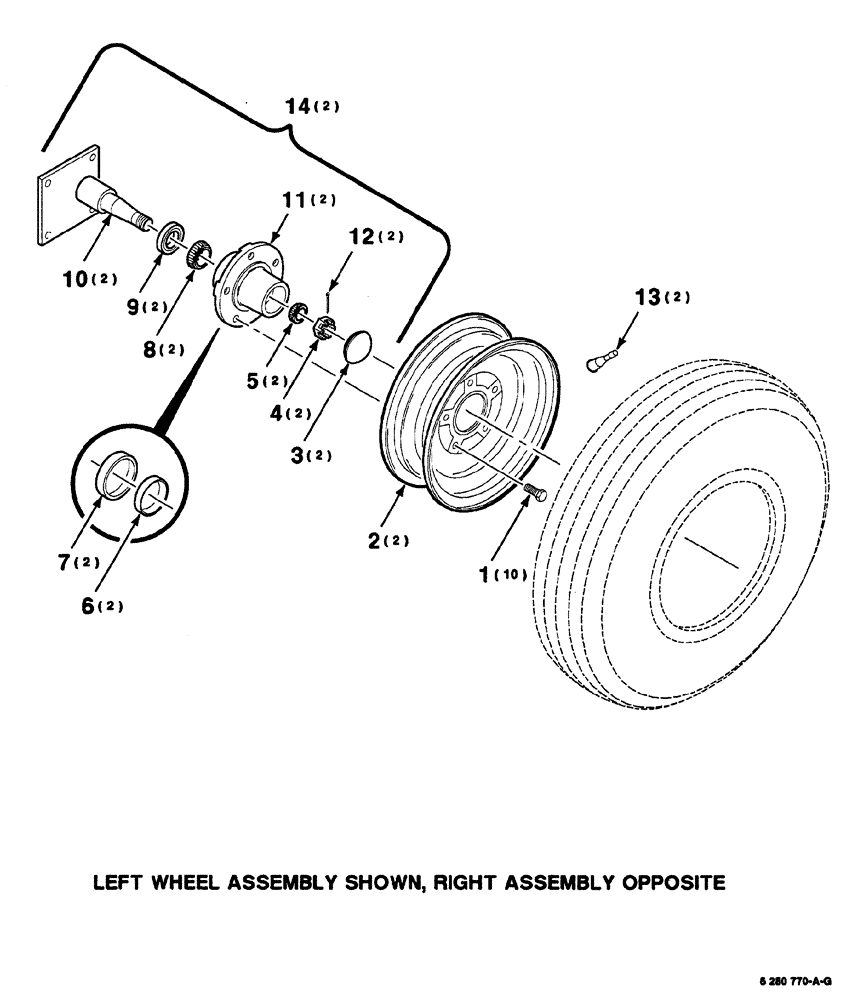

Запчасти Case IH 8420 (07-20) - WHEEL AND HUB ASSEMBLY (12) - MAIN FRAME

1

T52730

WHEEL BOLT

wheel, 9/16"-18 x 1-1/8"

10шт.

2

700707956

WHEEL

15" x 6"

2шт.

3

T27814

CAP

hub

2шт.

4

704346

BRACKET

slotted hex jam, 1"-14

2шт.

5

E13994

BEARING,25.4mm ID

CONE outer

2шт.

6

50104

BEARING CUP,50.01mm OD

CUP outer

2шт.

Part of Hub Assy. P/N 6280788

1шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

Part of Hub Assy. P/N 6280788

1шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

inner

2шт.

9

844571

SEAL

grease

2шт.

10

6280804

SPINDLE

WA

2шт.

11

6280788

HUB

ASSY., Includes: Ref. 6 and 7

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

13

A38261

VALVE

STEM

2шт.

14

6280770

HUB

SPINDLE ASSY., Includes: Ref. 3 thru 12

2шт.
