Запчасти Case IH 8420 (07-18) - SHIELDS ASSEMBLY (LOWER RIGHT) (12) - MAIN FRAME

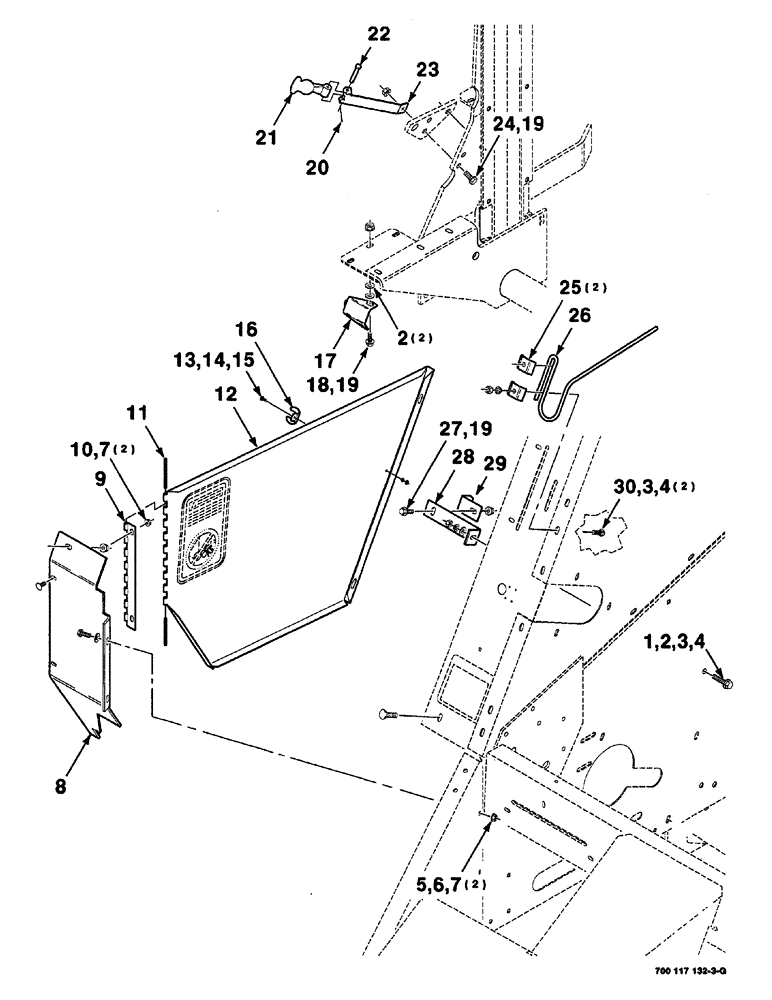

Схема запчастей Case IH 8420 - (07-18) - SHIELDS ASSEMBLY (LOWER RIGHT) (12) - MAIN FRAME
1
19
19
22
23
6
17
10
9
26
29
2
27
3
16
28
7
2
11
5
18
7
12
24
4
8
14
20
15
25
4
19
13
21
3
30

Артикул

Название

Примечание

Количество

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

3шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

700131747

SUPPORT

shield, front

1шт.

9

700117191

HINGE

1шт.

10

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

11

6556518

PIN

1шт.

12

700117195

SHIELD

ASSY. lower, right, includes decal

1шт.

13

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

14

492-11010

LOCK WASHER,#10

1шт.

15

225-14110

NUT,#10-24

1шт.

16

8722910

BRACKET

latch

1шт.

17

700117196

SUPPORT

shield, lower

1шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

19

231-5146

FLANGE NUT,3/8"-16

3шт.

20

432-612

COTTER PIN,3/32" x 3/4"

1шт.

21

494307C1

LATCH

rubber

1шт.

22

Q1329

HEADED PIN,1/4" x 1 3/4"

clevis, 1/4" x 1-3/4"

1шт.

23

700117197

SUPPORT

latch

1шт.

24

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

25

6251375

CLAMP

2шт.

26

700117209

ROD

alert

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

28

700117201

SUPPORT

shield

1шт.

29

700117202

SUPPORT

shield

1шт.

30

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

Выбрано товаров: 30
