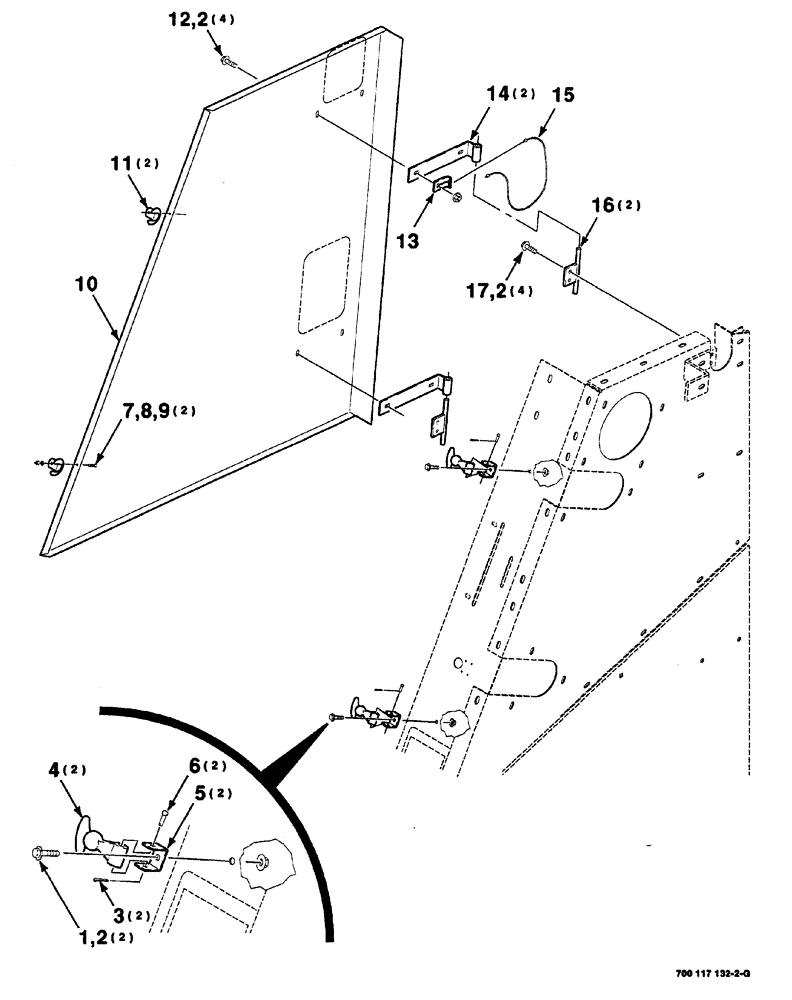

Запчасти Case IH 8420 (07-16) - SHIELDS ASSEMBLY (UPPER RIGHT) (12) - MAIN FRAME

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

3

432-612

COTTER PIN,3/32" x 3/4"

2шт.

4

494307C1

LATCH

rubber

2шт.

5

776674

SUPPORT

ANCHOR hook

2шт.

6

141-13

CLEVIS PIN,1/4" x 1.594"

clevis, 1/4" x 1-1/2"

2шт.

7

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

2шт.

8

492-11010

LOCK WASHER,#10

2шт.

9

225-14110

NUT,#10-24

2шт.

10

700117208

SHIELD

ASSY. upper, right, includes decals

1шт.

11

8722910

BRACKET

catch

2шт.

12

706176

SCREW

machine, cross recess truss head, 5/16"-18 x 3/4"

4шт.

13

700114675

ANCHOR

cable

1шт.

14

700117203

HINGE

WA shield

2шт.

15

700706805

CABLE

stop

1шт.

16

700117198

ROD

WA hinge

2шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.
