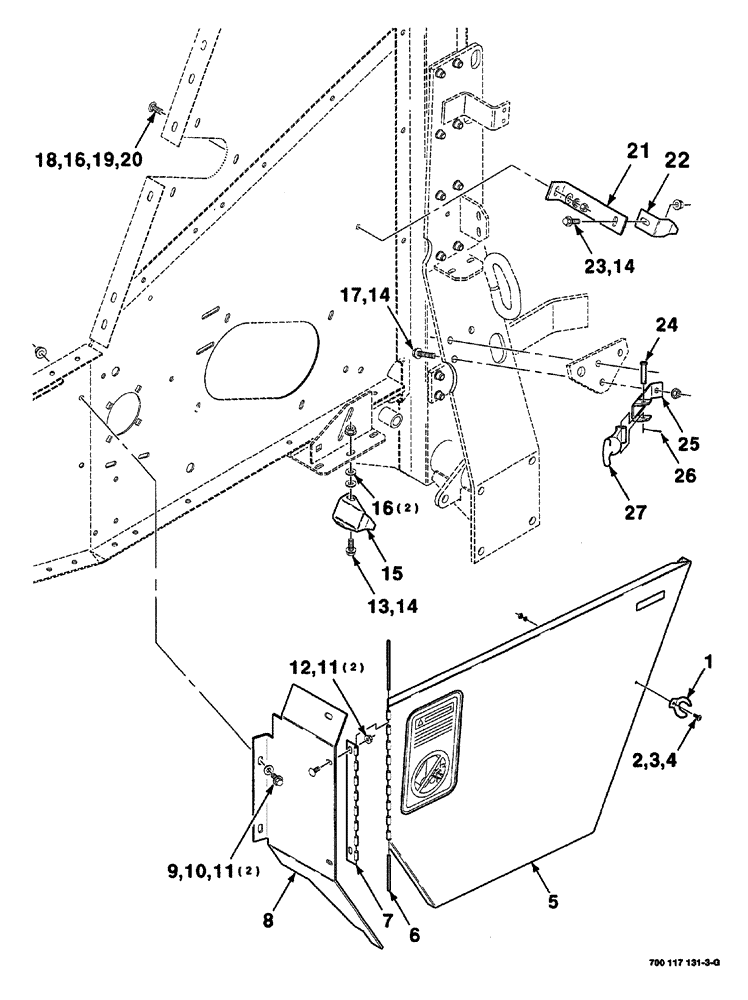

Запчасти Case IH 8420 (07-14) - SHIELDS ASSEMBLY (LOWER LEFT) (12) - MAIN FRAME

1

8722910

BRACKET

catch

1шт.

2

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

3

492-11010

LOCK WASHER,#10

1шт.

4

225-14110

NUT,#10-24

1шт.

5

700117194

SHIELD

ASSY. side, left, includes decal

1шт.

6

6556518

PIN

hinge

1шт.

7

700117193

HINGE

1шт.

8

700131753

SUPPORT

shield, front

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

14

231-5146

FLANGE NUT,3/8"-16

3шт.

15

700117196

SUPPORT

shield

1шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

3шт.

17

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

19

492-11038

LOCK WASHER,3/8"

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

21

700117201

SUPPORT

shield

1шт.

22

700117202

SUPPORT

shield

1шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

24

Q1329

HEADED PIN,1/4" x 1 3/4"

clevis, 1/4" x 1-3/4"

1шт.

25

700117197

SUPPORT

latch

1шт.

26

432-612

COTTER PIN,3/32" x 3/4"

1шт.

27

494307C1

LATCH

rubber

1шт.
