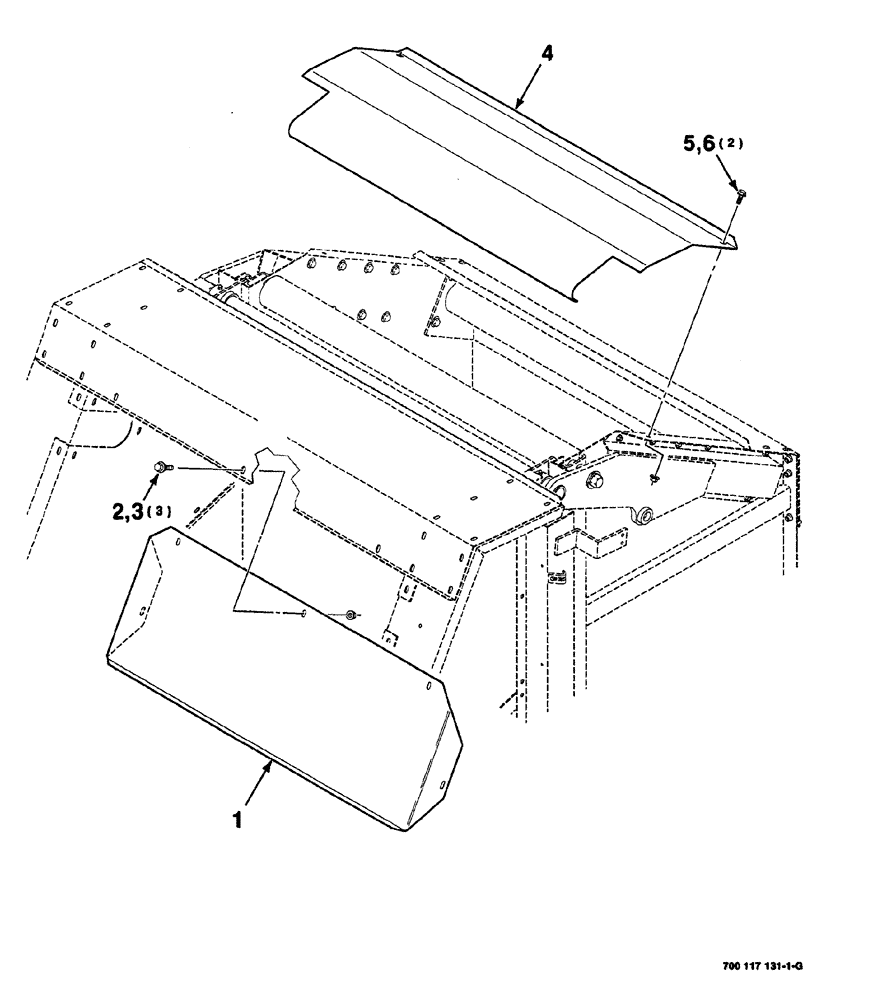

Запчасти Case IH 8420 (07-10) - SHIELDS ASSEMBLY (TOP) (12) - MAIN FRAME

1

700131856

SHIELD

front

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

4

700117142

SHIELD

roller, top

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.
