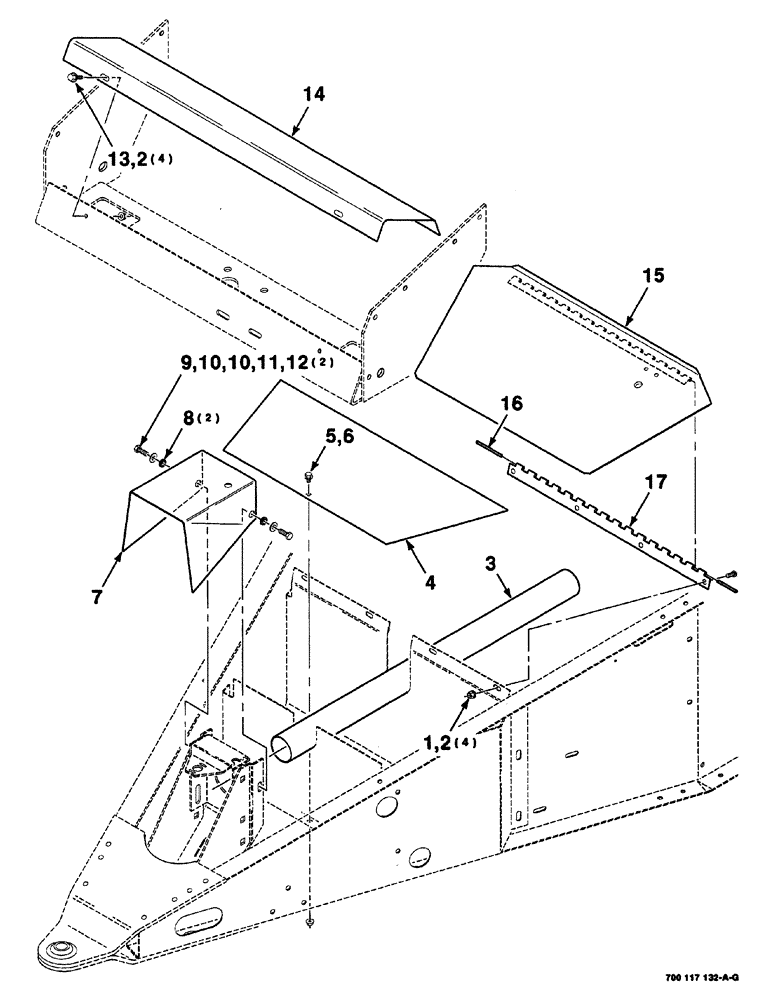

Запчасти Case IH 8420 (07-08) - SHIELDS ASSEMBLY (U-JOINT AND TWINE BOX) (12) - MAIN FRAME

1

440-13812

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

machine, cross recess pan head, 3/8"-16 x 3/4"

4шт.

2

231-5146

FLANGE NUT,3/8"-16

8шт.

3

700101843

SHIELD

shaft, drive

1шт.

S/N CFH0010501 thru CFH0054372

1шт.

3

700127911

SHIELD

shaft, drive

1шт.

S/N CFH0054373 and later

1шт.

4

700101720

FOOT BOARD

twine box

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

700101851

SHIELD

U-joint

1шт.

8

160127

SPACER

BUSHING

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

4шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

14

700101850

SHIELD

1шт.

15

700117211

COVER ASSY

WA

1шт.

16

65250

PIN,4.76mm OD x 571.5mm L

hinge

1шт.

17

700101848

HALF-HINGE

lid, twine box

1шт.
