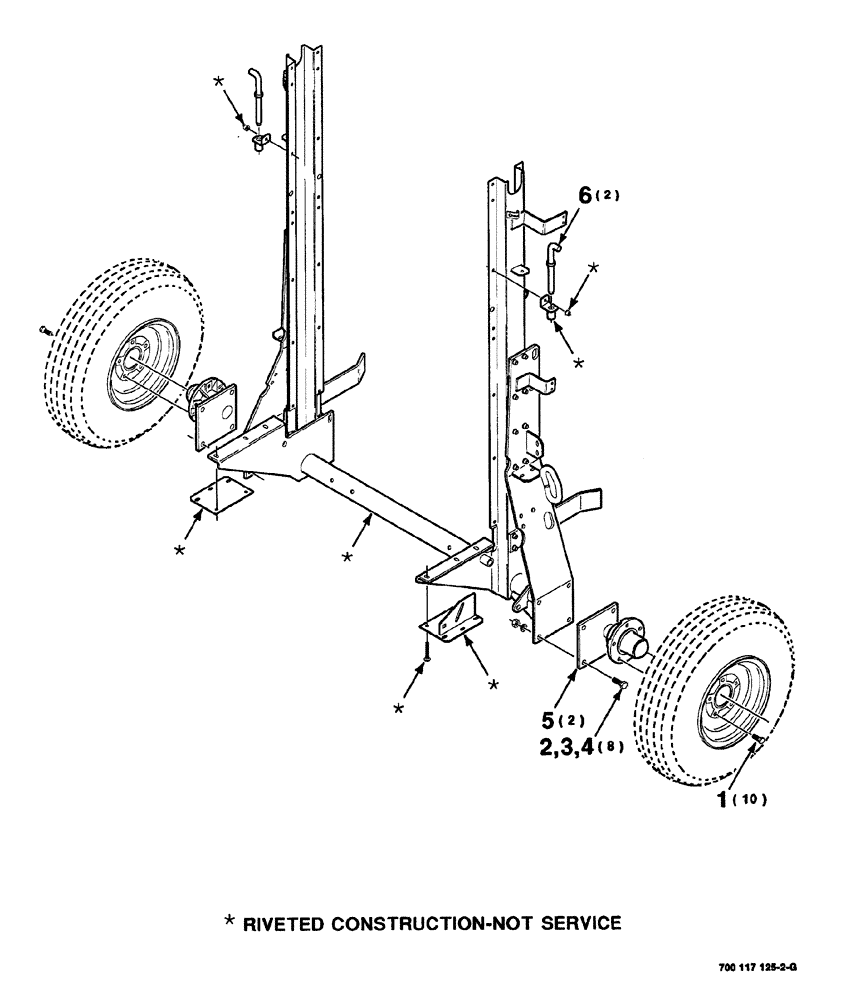

Запчасти Case IH 8420 (07-06) - WHEEL SUPPORT MAINFRAME ASSEMBLY (12) - MAIN FRAME

1

T52730

WHEEL BOLT

wheel, 9/16"-18 x 1-1/8"

10шт.

2

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

SCREW hex cap, 5/8"-11 x 1-3/4"

8шт.

3

492-11062

BEARING WASHER,5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

6280770

HUB

ASSY., see Figure 07-20

2шт.

6

700100009

PIN

WA handle

2шт.
