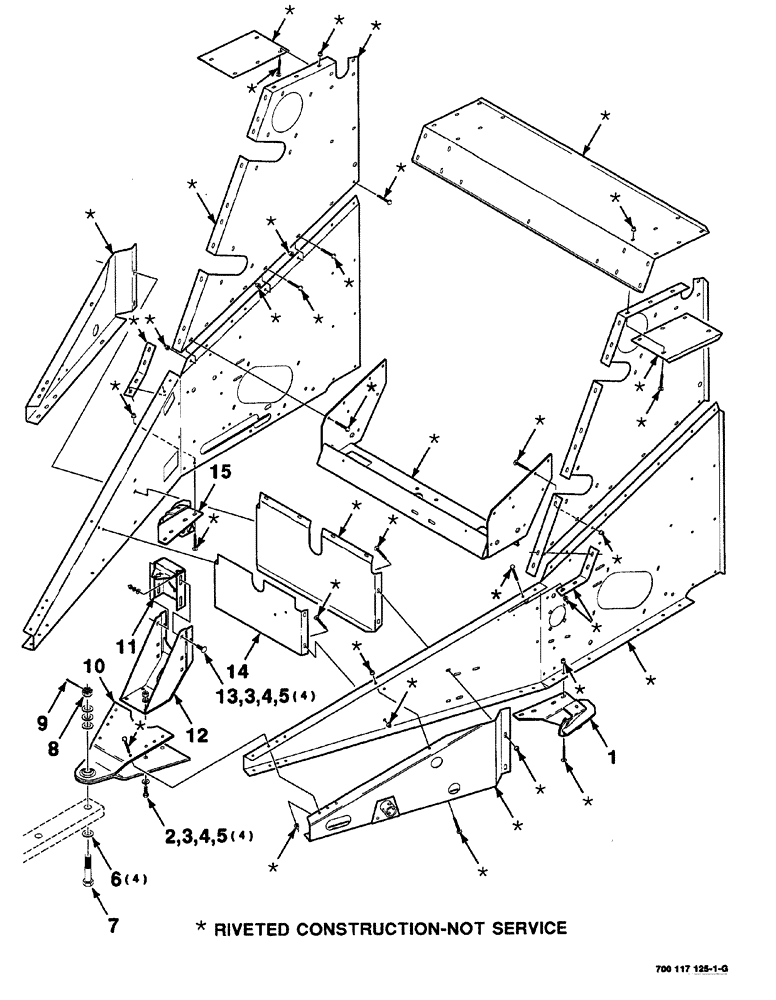

Запчасти Case IH 8420 (07-04) - HITCH AND MAINFRAME ASSEMBLY (12) - MAIN FRAME

1

700117162

SUPPORT

WA left

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2"

8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

8шт.

6

705574

WASHER,1 1/8" x 2" x .156", HDN

4шт.

7

6471791

BOLT

hex cap, special, 1"-8 x 5"

1шт.

8

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

9

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

10

700101678

HITCH ASSY, TRAILER

WA

1шт.

11

700131855

SUPPORT

bearing

1шт.

12

700131869

SUPPORT

MOUNTING bearing

1шт.

13

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

14

700131754

PANEL

twine box, front

1шт.

15

700117163

SUPPORT

WA right

1шт.
