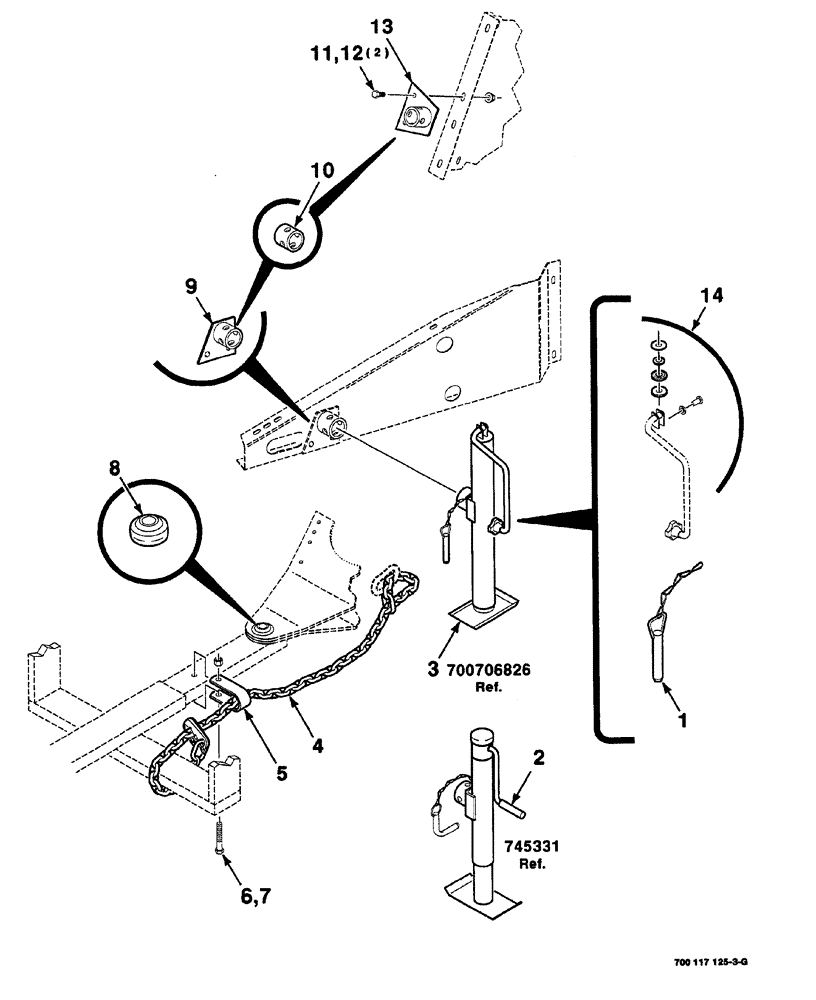

Запчасти Case IH 8420 (07-02) - JACK AND TOW CHAIN ASSEMBLY (SAFETY) (12) - MAIN FRAME

1

756007

PIN

CHAIN ASSY., use with 745331 jack

1шт.

1

700706640

PIN

CHAIN ASSY., use with 700706826 jack

1шт.

2

745315

JACK

ASSY. lift

1шт.

2

700709385

JACK

Assy, Lift

1шт.

3

700706826

JACK

ASSY. lift

1шт.

3

700706826

JACK

ASSY. lift

1шт.

4

700705598

CHAIN (CE)

safety

1шт.

5

148558C1

CLEVIS

safety chain

1шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

7

230-41110

LOCK NUT,5/8"-11, GA

lock, hex top, 5/8"-11, GR/B

1шт.

8

D51609

BALL JOINT

BEARING tongue

1шт.

9

700101877

SUPPORT

MOUNT, WA jack, Includes: Ref. 10

1шт.

10

6227391

TUBE,2" OD, 1.88" Length

jack

1шт.

Part of Jack Mount WA P/N 700101877

1шт.

Part of Jack Mount WA P/N 700119914

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

700119914

MOUNTING PARTS

WA jack, Includes: Ref. 10

1шт.

14

700711826

JACK

KIT service, T.W.

1шт.
