(08-08) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE) (S/N CFH0054166 AND LATER)

Запчасти Case IH 8420 (08-08) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE) (S/N CFH0054166 AND LATER) (07) - HYDRAULICS

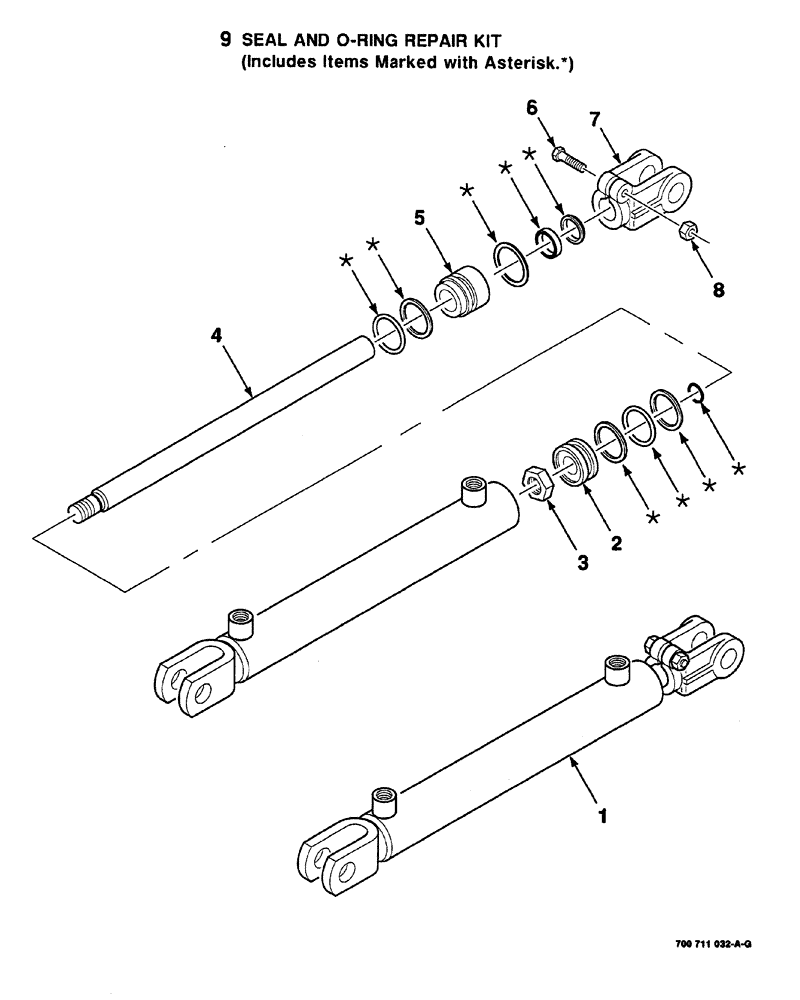

Схема запчастей Case IH 8420 - (08-08) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE) (S/N CFH0054166 AND LATER) (07) - HYDRAULICS
9
6
5
3
4
7
1
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711032

CYLINDER ASSY.

hydraulic, complete

1шт.

2

700707419

PISTON

1шт.

3

700707418

JAM NUT

hex jam, 7/8"-14

1шт.

4

700711111

ROD

1шт.

5

700711112

GUIDE

1шт.

6

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

7

700711113

CLEVIS

rod

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

700711114

SEAL KIT

seal, includes items marked with an asterisk on the illustration

1шт.
