(08-06) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE) (S/N CFH0010501 THRU CFH0054165)

Запчасти Case IH 8420 (08-06) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE) (S/N CFH0010501 THRU CFH0054165) (07) - HYDRAULICS

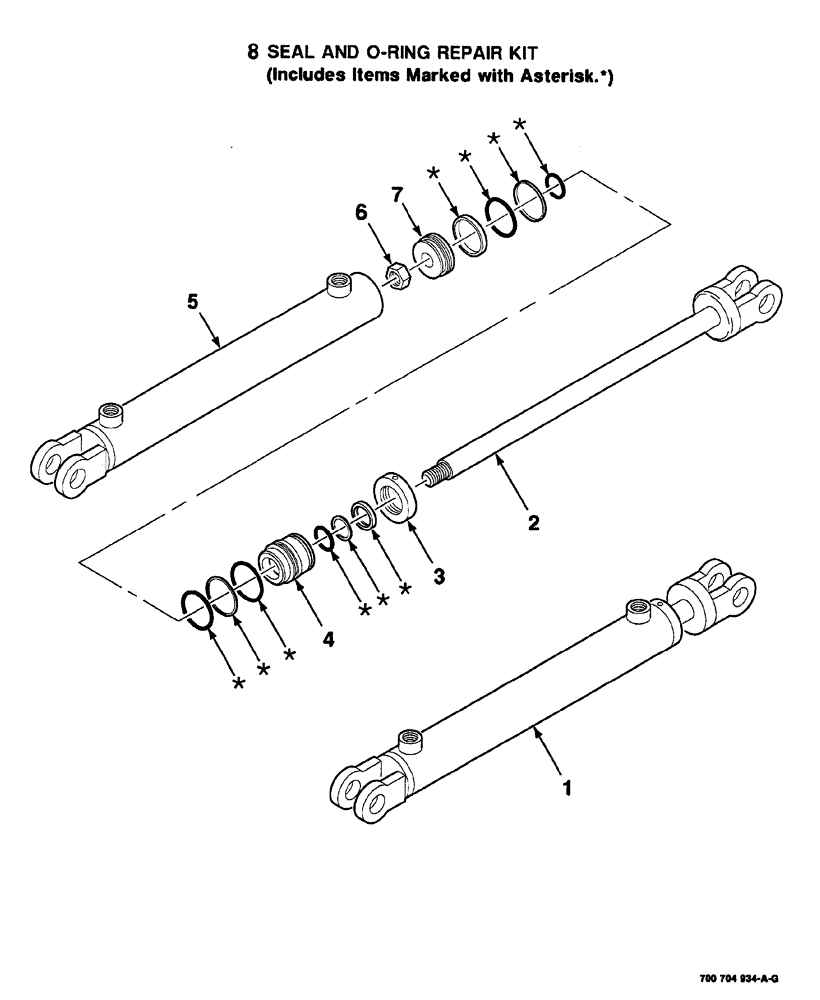

Схема запчастей Case IH 8420 - (08-06) - HYDRAULIC CYLINDER ASSEMBLY (TAILGATE) (S/N CFH0010501 THRU CFH0054165) (07) - HYDRAULICS
5
7
2
4
1
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700704934

CYLINDER

ASSY. hydraulic, complete

1шт.

2

700704937

ROD

WA piston

1шт.

3

700704939

RETAINER

1шт.

4

700704935

BUSHING

1шт.

5

700704936

SLEEVE CYLINDER

BARREL

1шт.

6

700704938

LOCK NUT

lock

1шт.

7

700704942

PISTON

1шт.

8

700704941

SEAL KIT

KIT repair, O-ring, includes items marked with an asterisk on the illustration

1шт.

Выбрано товаров: 8
