Запчасти Case IH 8420 (08-02) - HYDRAULIC ASSEMBLY (S/N CFH0010501 THRU CFH0054165) (07) - HYDRAULICS

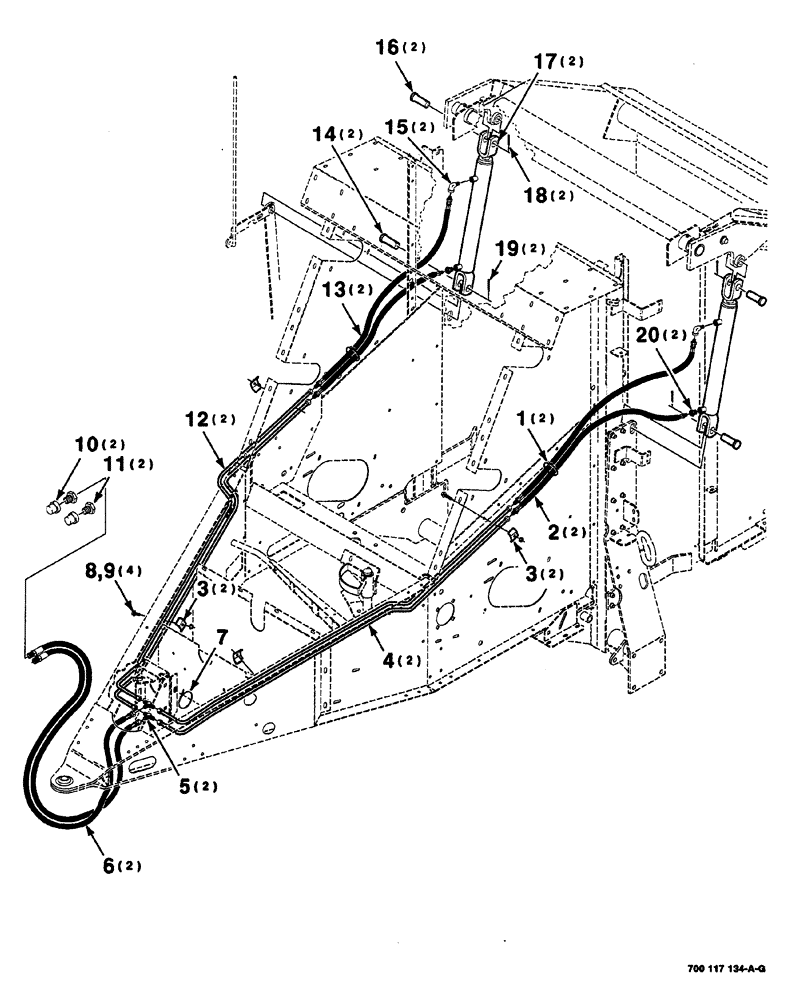

Схема запчастей Case IH 8420 - (08-02) - HYDRAULIC ASSEMBLY (S/N CFH0010501 THRU CFH0054165) (07) - HYDRAULICS
18
1
3
12
13
5
6
10
7
16
8
11
14
15
17
2
9
4
3
19
20

Артикул

Название

Примечание

Количество

1

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

2шт.

2

872853

HOSE

hydraulic

2шт.

3

6251375

CLAMP

4шт.

4

700700820

RIGID TUBE

hydraulic, left

2шт.

5

218-593

TEE,9/16"-18, 37 Degree

flared, 9/16"-18

2шт.

6

7872641

HOSE

hydraulic

2шт.

7

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

1шт.

8

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

4шт.

9

231-5146

FLANGE NUT,3/8"-16

4шт.

10

746677

CAP

pipe

2шт.

11

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

Bushing

2шт.

12

700700821

FLEXIBLE HOSE

hydraulic, right

2шт.

13

700700817

HOSE

hydraulic

2шт.

14

439-51644

HEADED PIN,1" x 2 3/4", G5

clevis, 1" x 2-5/8"

2шт.

15

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

ELL street, 90°

2шт.

16

700710292

PIN

clevis, special, 1" x 2-3/4"

2шт.

17

700704934

CYLINDER

ASSY. hydraulic, see Figure 08-06

2шт.

18

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

20

7046592

FITTING

BUSHING reducer

2шт.

Выбрано товаров: 20
