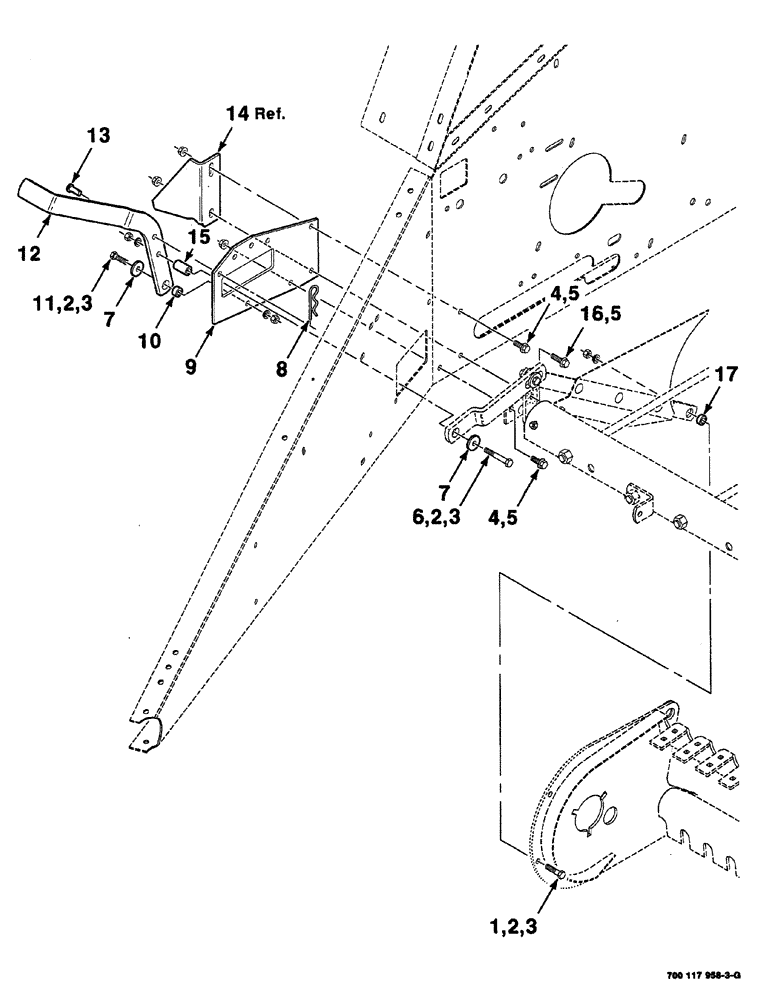

Запчасти Case IH 8420 (03-12) - DEFLECTOR CONTROL ASSEMBLY (RIGHT) Pickup

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

2

492-11038

LOCK WASHER,3/8"

3шт.

3

425-106

NUT,3/8"-16, Cl 5

3шт.

4

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

5

231-5146

FLANGE NUT,3/8"-16

3шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

7

451526

THRUST WASHER

2шт.

8

S120261

PIN

COTTER wire hair, .148"

1шт.

9

700117140

MOUNTING PARTS

1шт.

10

6255350

SPACER

BUSHING

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

700117255

LEVER

1шт.

13

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

3/8" x 1"

1шт.

14

700117260

BRACE

support, right

1шт.

15

286476

SPACER

1шт.

16

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

17

6212740

SPACER

BUSHING

1шт.
