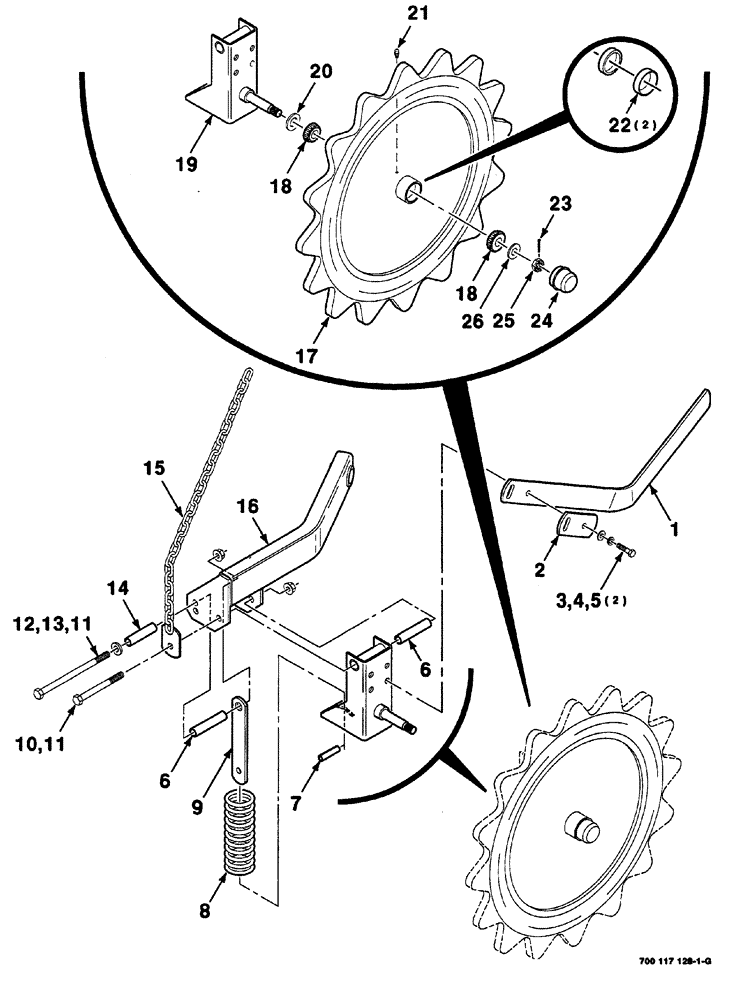

Запчасти Case IH 8420 (03-06) - GATHERING WHEEL ASSEMBLY (RIGHT) Pickup

1

700120644

DEFLECTOR

right

1шт.

2

700120645

REINFORCEMENT

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

2шт.

6

700117257

SPACER

2шт.

7

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

1шт.

8

700707651

SPRING

compression

1шт.

9

700117013

STRAP

spring

1шт.

10

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW hex cap, 1/2"-13 x 5"

1шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

12

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

SCREW hex cap, 1/2"-13 x 8"

1шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2"

1шт.

14

6524003

SPACER

1шт.

15

700117256

SUPPORT

WA chain

1шт.

16

700117241

SLIDE

STRUT, WA right

1шт.

17

700117265

WHEEL

ASSY. gathering, Includes: Ref. 22

1шт.

18

R53173

ROLLER BEARING,0.75" ID x 0.655"

cone

2шт.

19

700117270

SPINDLE

WA

1шт.

20

495-11081

WASHER,3/4", SAE

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

651814R1

BEARING CUP

2шт.

Part of Gathering Wheel Assy. P/N 700117265

1шт.

23

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

24

700709032

CAP

hub

1шт.

25

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

1шт.

26

495-11066

WASHER,5/8", SAE

narrow plain, 5/8"

1шт.
