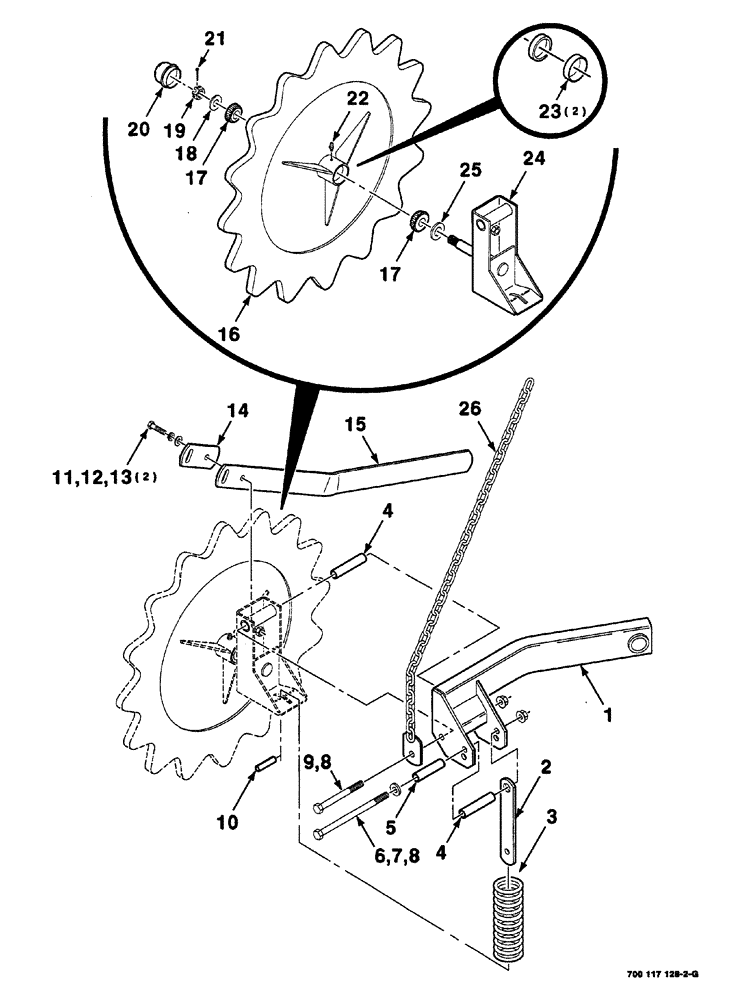

Запчасти Case IH 8420 (03-04) - GATHERING WHEEL ASSEMBLY (LEFT) Pickup

1

700117240

STRUT

WA left

1шт.

2

700117013

STRAP

spring

1шт.

3

700707651

SPRING

compression

1шт.

4

700117257

SPACER

2шт.

5

6524003

SPACER

1шт.

6

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

SCREW hex cap, 1/2"-13 x 8"

1шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2"

1шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

9

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW hex cap, 1/2"-13 x 5"

1шт.

10

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

2шт.

14

700120645

REINFORCEMENT

1шт.

15

700120643

DEFLECTOR

left

1шт.

16

700117265

WHEEL

ASSY. gathering, Includes: Ref. 23

1шт.

17

R53173

ROLLER BEARING,0.75" ID x 0.655"

cone

2шт.

18

495-11066

WASHER,5/8", SAE

narrow plain, 5/8"

1шт.

19

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

1шт.

20

700709032

CAP

hub

1шт.

21

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

23

651814R1

BEARING CUP

2шт.

Part of Gathering Wheel Assy. P/N 700117265

1шт.

24

700117270

SPINDLE

WA

1шт.

25

495-11081

WASHER,3/4", SAE

1шт.

26

700117256

SUPPORT

WA chain

1шт.
