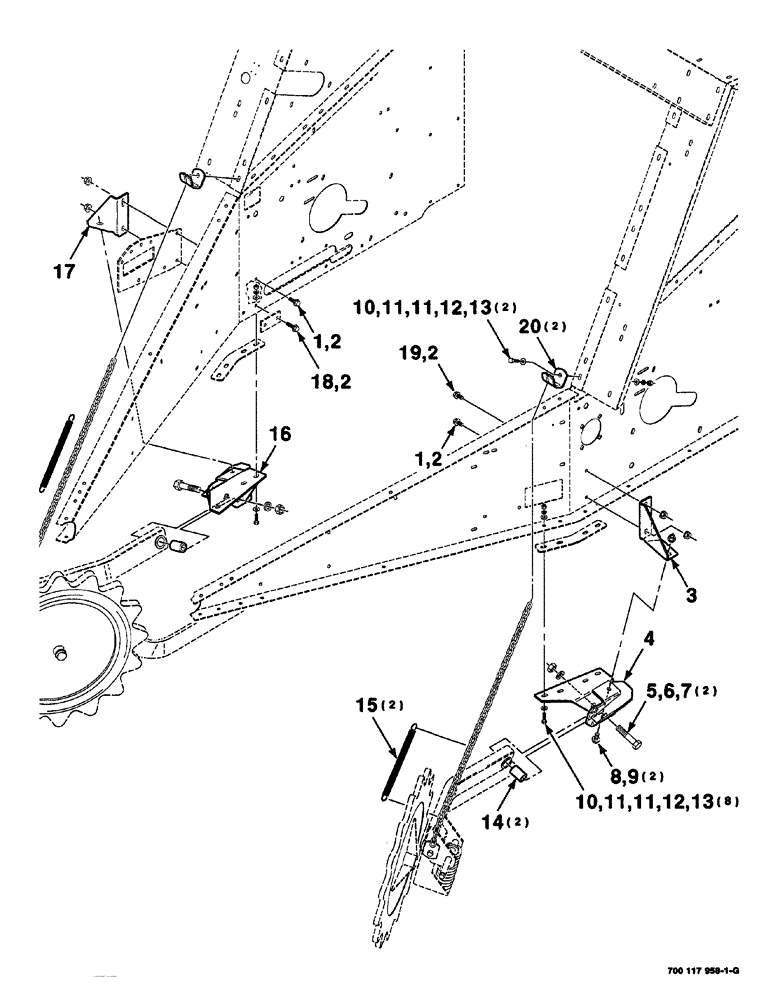

Запчасти Case IH 8420 (03-02) - GATHERING WHEEL MOUNTING ASSEMBLY Pickup

1

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

2

231-5146

FLANGE NUT,3/8"-16

4шт.

3

700117258

BRACE

support, left

1шт.

4

700117162

SUPPORT

strut, left

1шт.

5

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

hex cap, 3/4"-10 x 3-1/4"

2шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

7

425-1012

NUT,3/4"-10, G5

2шт.

8

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

20шт.

12

492-11038

LOCK WASHER,3/8"

10шт.

13

425-106

NUT,3/8"-16, Cl 5

10шт.

14

700117287

BUSHING

SPACER

2шт.

15

51200296

SPRING

2шт.

16

700117163

SUPPORT

strut, right

1шт.

17

700117260

BRACE

support, right

1шт.

18

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

19

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

20

700101727

SUPPORT

ANCHOR chain

2шт.
