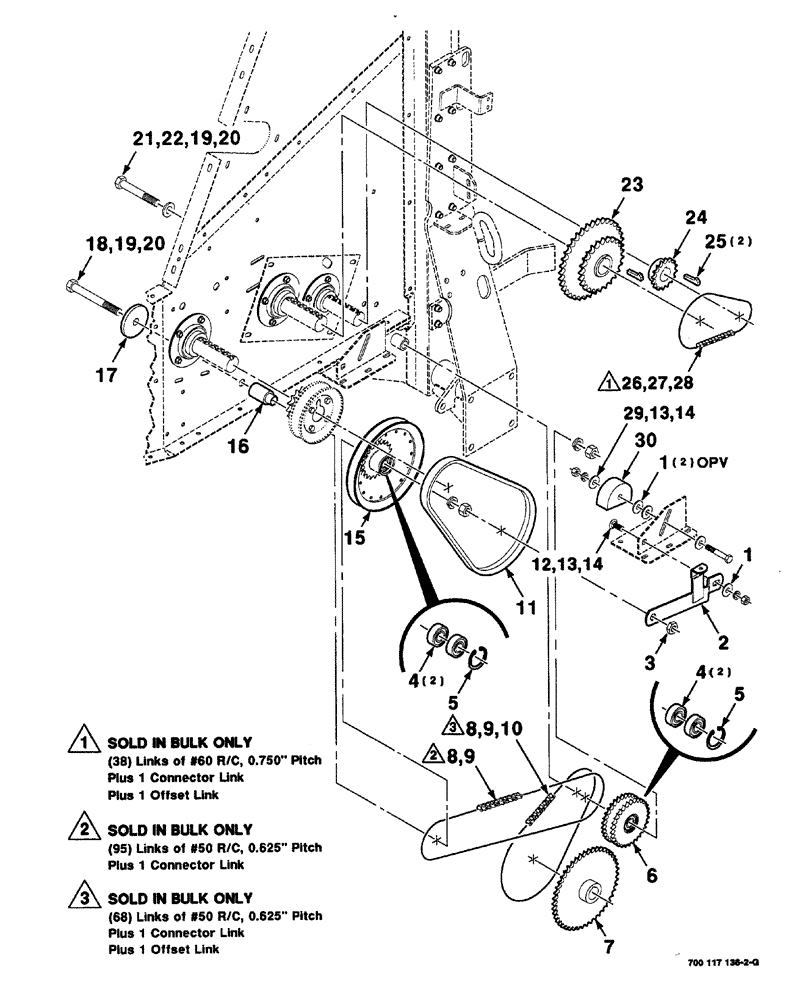

Запчасти Case IH 8420 (02-18) - DRIVE ASSEMBLY (SECONDARY) Driveline

1

495-21056

WASHER,1/2"

wide plain, 1/2"

3шт.

2

700131874

STRAP

WA idler, arm

1шт.

3

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex jam, 3/4"-10

1шт.

4

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

cylindrical

4шт.

Part of Double Sprocket Assy. P/N 6241848

1шт.

Part of Sprocket Sheave Assy. P/N 700126740

1шт.

5

100-21175

SNAP RING,1.75", Int, #175

2шт.

Part of Double Sprocket Assy. P/N 6241848

1шт.

Part of Sprocket Sheave Assy. P/N 700126740

1шт.

6

6241848

DRIVE SPROCKET

ASSY. double, 25 tooth, Includes: Ref. 4 and 5

1шт.

7

6284046

PINION

SPROCKET, WA, 45 tooth, Ref. pickup drive see Figure 03-14

1шт.

8

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50, 10 foot bulk

2шт.

9

47530

LINK, CONNECTING

#50 R/C

2шт.

10

241-1715

LINK,15.88mm Pitch

offset, #50 R/C

1шт.

11

57604

V-BELT

1шт.

12

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

2шт.

15

700126740

SHEAVE

ASSY. sprocket, Includes: Ref. 4 and 5

1шт.

16

700101762

SPACER

1шт.

17

6579106

LARGE PLATE

PLATE, LARGE WASHER special

1шт.

18

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4"-10 x 6-1/2"

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

20

425-1012

NUT,3/4"-10, G5

2шт.

21

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

22

705566

WASHER

hardened plain, 3/4"

1шт.

23

700101757

SPROCKET

SPROCKET, WA double, 24 and 36 tooth, see Figure 02-14

1шт.

24

700101814

SPROCKET

SPROCKET, WA, 16 tooth

1шт.

25

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

2шт.

26

241-1316

LINK,19.05mm Pitch

CHAIN roller, #60, 10 foot bulk

1шт.

27

241-1316

LINK,19.05mm Pitch

connector, #60 R/C

1шт.

28

241-1716

LINK,19.05mm Pitch

HALF LINK offset, #60 R/C

1шт.

29

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW hex cap, 1/2"-13 x 3"

1шт.

30

760728

BLOCK ASSY.

chain, idler

1шт.
