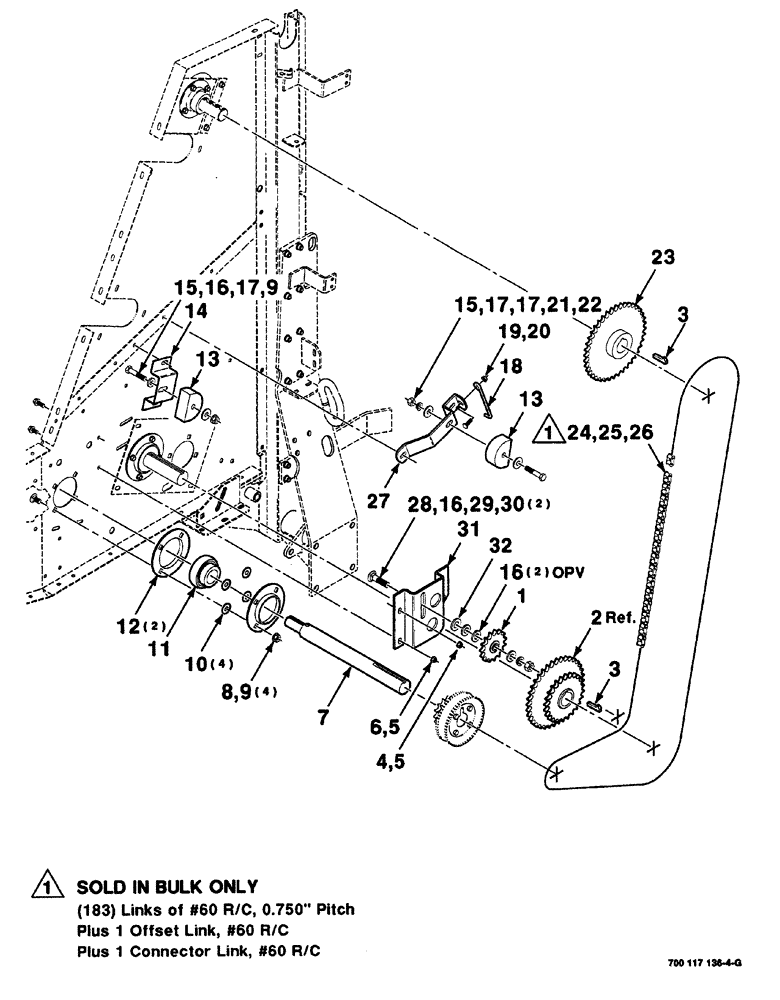

Запчасти Case IH 8420 (02-14) - DRIVE ASSEMBLY (UPPER RUBBER ROLLER) Driveline

1

541857R92

SPROCKET,15T

idler, 15 tooth

1шт.

2

700101757

SPROCKET

SPROCKET, WA, double, 24 and 36 tooth

1шт.

3

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

2шт.

4

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

7

700101760

SHAFT

1шт.

8

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT round head square neck, 1/2"-13 x 1"

4шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

10

7852213

SHIM

4шт.

582815R91

BEARING

Bearing Assy.

1шт.

11

582816R11

COLLAR

BEARING spherical

1шт.

12

50583

FLANGED BEARING

bearing

2шт.

13

760728

BLOCK ASSY.

tightener

2шт.

14

700136454

STRAP

1шт.

15

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW hex cap, 1/2"-13 x 2-1/2"

2шт.

16

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2"

5шт.

17

495-21056

WASHER,1/2"

wide plain, 1/2"

3шт.

18

700132337

RETAINER

1шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

20

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8"-16, GR/G

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

700101759

SPROCKET

SPROCKET, 39 tooth

1шт.

24

241-1316

LINK,19.05mm Pitch

CHAIN roller, #60, 10 foot bulk

1шт.

25

241-1716

LINK,19.05mm Pitch

HALF LINK offset, #60 R/C

1шт.

26

241-1316

LINK,19.05mm Pitch

connector, #60 R/C

1шт.

27

700117171

MOUNTING PARTS

idler

1шт.

28

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

round head square neck, 5/8"-11 x 2-1/2"

2шт.

29

492-11062

BEARING WASHER,5/8"

2шт.

30

425-1010

NUT,5/8"-11, G5

2шт.

31

700101764

SUPPORT

MOUNT tightener

1шт.

32

705566

WASHER

hardened plain, 3/4"

1шт.
