(02-12) - DRIVE ASSEMBLY (PICKUP BELT TIGHTENER)

Запчасти Case IH 8420 (02-12) - DRIVE ASSEMBLY (PICKUP BELT TIGHTENER) Driveline

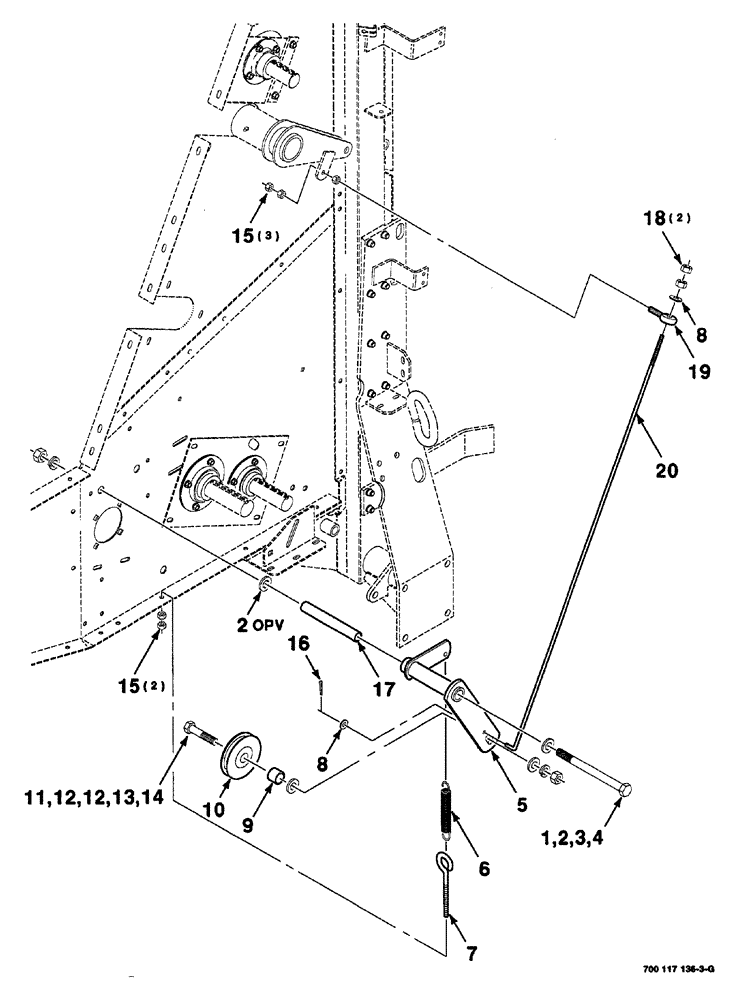

Схема запчастей Case IH 8420 - (02-12) - DRIVE ASSEMBLY (PICKUP BELT TIGHTENER) Driveline
6
1
19
7
8
11
5
4
12
14
15
8
12
15
2
2
9
13
16
17
10
20
18
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

BOLT hex, 3/4"-10 x 7-1/2"

1шт.

2

705566

WASHER

hardened plain, 3/4"

2шт.

3

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

4

425-1012

NUT,3/4"-10, G5

1шт.

5

700101753

ARM

ARM idler

1шт.

6

758789

COIL SPRING

tension

1шт.

7

51200285

SCREW

EYEBOLT

1шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

9

6484257

SPACER

1шт.

10

662958R91

PULLEY

IDLER flat

1шт.

11

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

12

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

2шт.

13

492-11062

BEARING WASHER,5/8"

1шт.

14

425-1010

NUT,5/8"-11, G5

1шт.

15

425-106

NUT,3/8"-16, Cl 5

5шт.

16

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

17

700101763

SPACER

SPACER

1шт.

18

425-105

NUT,5/16"-18, G5

2шт.

19

296608

BOLT,3/8" - 16 x 2"

eye

1шт.

20

700101729

ROD

declutcher

1шт.
