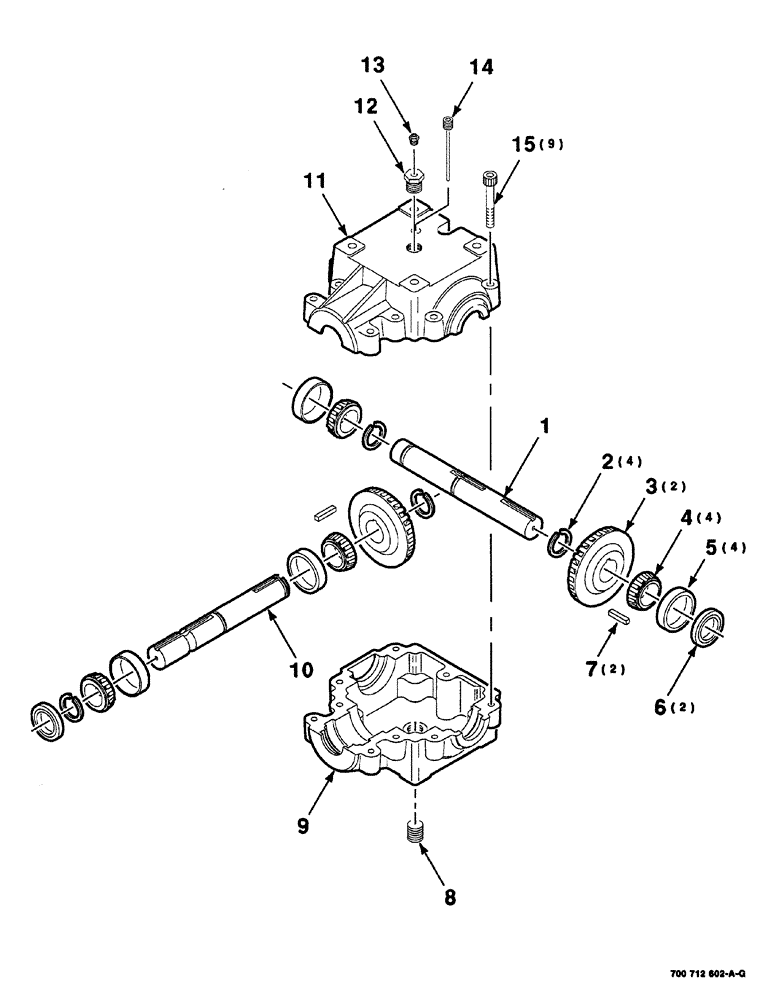

Запчасти Case IH 8420 (02-10) - GEARBOX ASSEMBLY (S/N CFH0054373 AND LATER) Driveline

700712602

GEARBOX ASSY

complete

1шт.

1

700712603

SHAFT

cross

1шт.

2

700712608

OIL SEAL

RING retaining

4шт.

3

700712610

GEAR

21 tooth

2шт.

4

T20939

ROLLER BEARING,1.25" ID x 0.771"

bearing, tapered

4шт.

5

ST991

BEARING CUP

bearing, tapered

4шт.

6

76961C1

OIL SEAL

2шт.

7

1707058

KEY

special, 1/4" x 1/4" x 1.20"

2шт.

8

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

hex CSK pipe, 1/2"-14 NPT

1шт.

9

700712607

HOUSING

CASTING tapped holes

1шт.

10

700712605

SHAFT

pinion

1шт.

11

700712606

HOUSING

CASTING thru holes

1шт.

12

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

BUSHING reducer

1шт.

13

700710818

VALVE

pressure relief, 5 psi

1шт.

14

700710819

DIPSTICK

1шт.

15

61-33836

HEX SOC SCREW,3/8 - 16 x 2-1/4"

cap, hex socket head, 3/8"-16 x 2-1/4"

9шт.
