(02-08) - GEARBOX ASSEMBLY (S/N CFH0010501 THRU CFH0054372)

Запчасти Case IH 8420 (02-08) - GEARBOX ASSEMBLY (S/N CFH0010501 THRU CFH0054372) Driveline

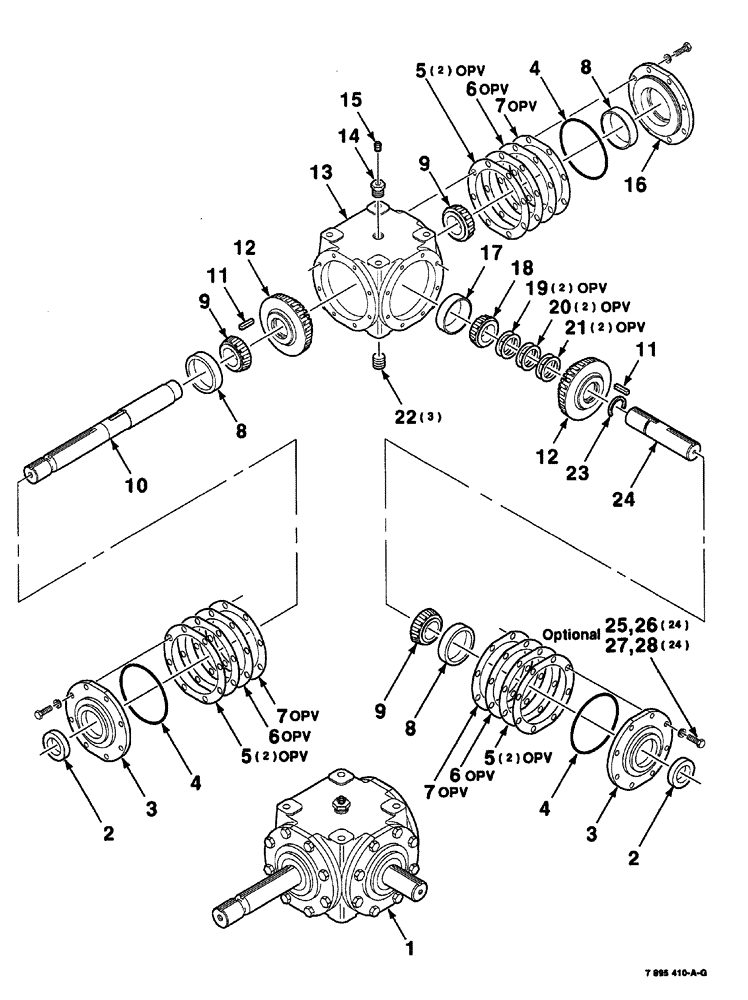

Схема запчастей Case IH 8420 - (02-08) - GEARBOX ASSEMBLY (S/N CFH0010501 THRU CFH0054372) Driveline
11
12
15
21
4
27
13
5
8
16
2
12
20
10
5
2
24
19
6
7
18
6
3
7
9
4
23
9
26
8
22
1
25
14
4
5
28
6
11
9
8
17
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7895410

GEARBOX ASSY

complete

1шт.

2

76961C1

OIL SEAL

2шт.

3

757120

CAP

2шт.

4

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Optional per vendor, use on end caps with ring groove

3шт.

5

1702216

GASKET

.015" thick

6шт.

6

1702224

GASKET

.005" thick

3шт.

7

1702232

GASKET

.003" thick

3шт.

8

ST991

BEARING CUP

bearing

3шт.

9

T20939

ROLLER BEARING,1.25" ID x 0.771"

bearing

3шт.

10

700703554

SHAFT

long

1шт.

11

753574

KEY

tapered

2шт.

12

757138

GEAR

2шт.

13

757062

HOUSING

1шт.

14

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

BUSHING reducer

1шт.

15

152127H1

BREATHER,1/8"-27, Short

PLUG vented

1шт.

16

757054

CAP

1шт.

17

651817R1

BEARING CUP

CUP

1шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

19

753418

SHIM

.002" thick

2шт.

20

753426

SHIM

.005" thick

2шт.

21

753434

SHIM

.010" thick

2шт.

22

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Pipe

3шт.

23

757229

RING, SNAP

RING SNAP retainer

1шт.

24

700703549

SHAFT

short

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

24шт.

26

492-11031

LOCK WASHER,5/16"

24шт.

27

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

24шт.

28

892-11008

LOCK WASHER,8mm ID

24шт.
