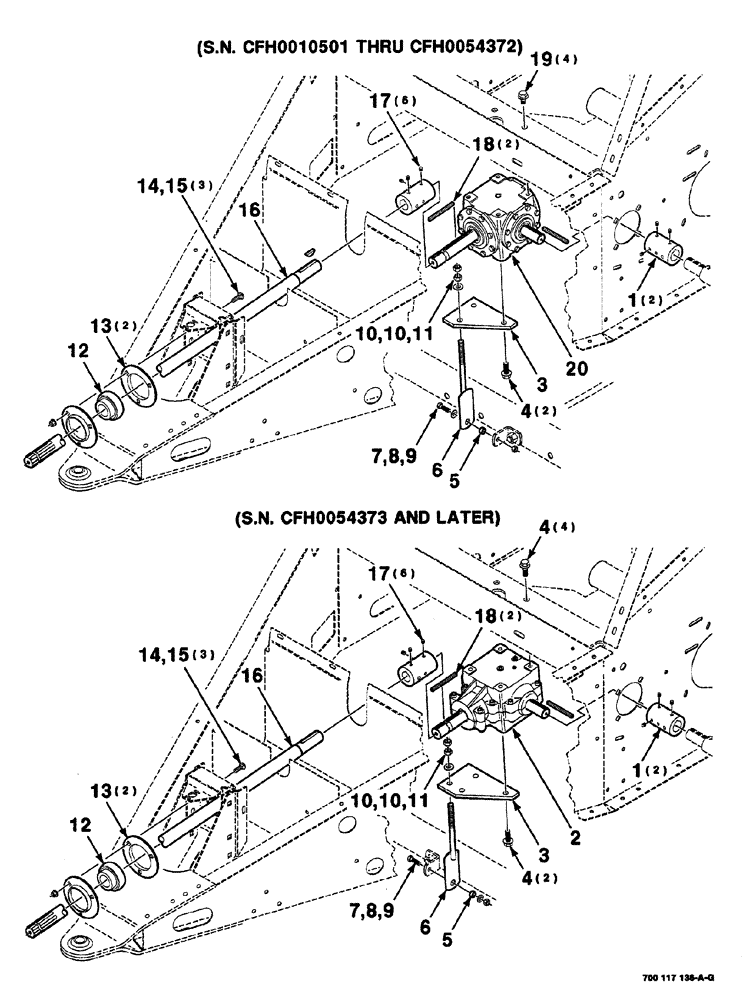

Запчасти Case IH 8420 (02-06) - DRIVE ASSEMBLY (PRIMARY) Driveline

1

6549257

HUB

4шт.

2

700712602

GEARBOX ASSY

see Figure 02-10

1шт.

3

700110416

ANCHOR

2шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

5

6489231

SPACER

2шт.

6

383620

BOLT

eye, WA

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8"

2шт.

9

230-4216

LOCK NUT,3/8"-16, GA

Center

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2"

2шт.

12

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

spherical

2шт.

13

617863R1

FLANGED BEARING

bearing

4шт.

14

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

15

231-5146

FLANGE NUT,3/8"-16

6шт.

16

700101761

SHAFT

primary

2шт.

17

178-878

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

set, cup point hex socket, 5/16"-18 x 5/16"

12шт.

18

761114

BUCKET TOOTH KEY

1/4" x 3-5/8"

4шт.

19

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

hex flange serrated, 1/2"-13 x 3/4"

4шт.

20

7895410

GEARBOX ASSY

see Figure 02-08

1шт.
