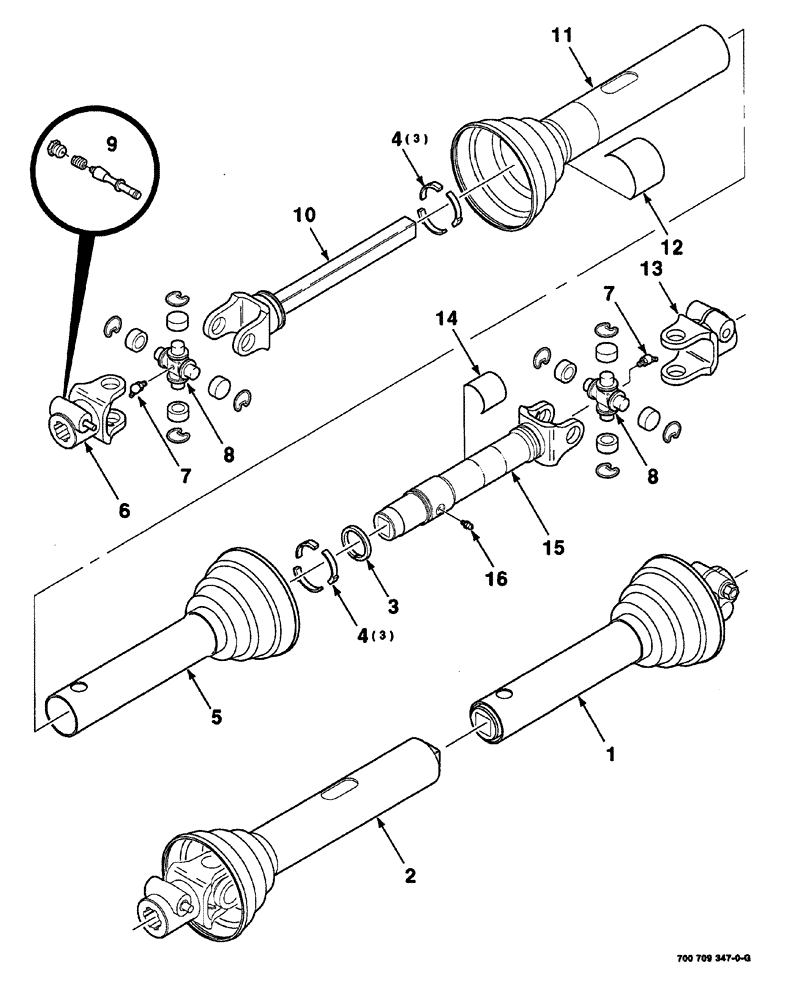

Запчасти Case IH 8420 (02-04) - IMPLEMENT DRIVELINE ASSEMBLY (NEAPCO) Driveline

1

700709468

GASKET

U-JOINT ASSY. impliement half

1шт.

2

700709467

TRANSMISSION

U-JOINT ASSY. tractor half

1шт.

3

700708956

BEARING

nylon, center

1шт.

4

700706872

CLIP

INSERT shield

6шт.

5

700709471

SHIELD

inner

1шт.

6

845180

CLEVIS

YOKE ASSY. tractor, 540 RPM, Includes: Ref. 9

1шт.

7

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK, 1/8"-27 x 65°

2шт.

Part of Cross and Bearing Repair Kit P/N 845198

1шт.

8

845198

KIT

repair, cross and bearing, Includes: Ref. 7

2шт.

9

237924A1

PACKAGE

KIT pin, quick disconnect

1шт.

Part of Tractor Yoke Assembly P/N 845180

1шт.

10

700711942

YOKE

UNIVERSAL JOINT YOKE SHAFT

1шт.

11

700709470

SHIELD

outer

1шт.

12

80672C1

DECAL

danger

1шт.

13

8802910

CLAMP

YOKE implement

1шт.

14

1326528C1

DECAL

shield missing

1шт.

15

700711941

YOKE

UNIVERSAL JOINT YOKE TUBE ASSY.

1шт.

16

219-425

LUBE NIPPLE,1/4" - 28

ZERK, 1/4"-28

1шт.
