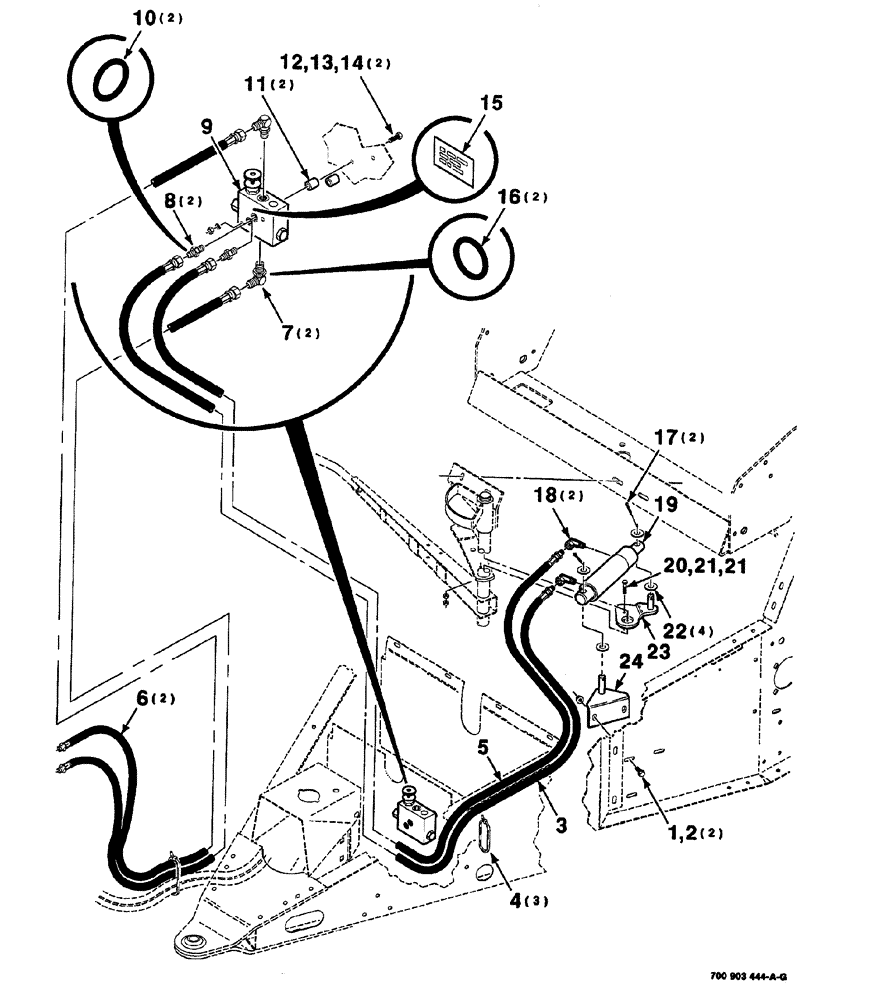

Запчасти Case IH 8420 (09-18) - HYDRAULIC THREADER KIT Decals & Attachments

HK50447

KIT hydraulic threader, complete, to be ordered thru wholegoods only

1шт.

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

2

231-5146

FLANGE NUT,3/8"-16

2шт.

3

700707774

HOSE

hydraulic

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

3шт.

5

700707773

HOSE

hydraulic

1шт.

6

700709807

HYDRAULIC HOSE,9.65 mm ID x 1925.00 mm, SAE 100R2

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 15

2шт.

8

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 10

2шт.

9

700707258

GOVERNOR

REGULATOR ASSY. flow, see Figure 09-22

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

Part of Connector P/N 218-5053

1шт.

11

6812952

SPACER

2шт.

12

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

hex cap, 5/16"-18 x 3-1/4"

2шт.

13

492-11031

LOCK WASHER,5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

700710298

DECAL

do not adjust

1шт.

Part of Elbow P/N 218-5128

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

432-1020

COTTER PIN,5/32" x 1 1/4"

2шт.

18

218-924

ELBOW,90 Degree, 1/4" NPTF Male x 1/4" NPSM Fem Sw

ELBOW, 90°

2шт.

19

7075625

CYLINDER

ASSY. hydraulic, see Figure 09-20

1шт.

21

425-104

NUT,1/4"-20, Cl 5

2шт.

22

495-11066

WASHER,5/8", SAE

narrow plain, 5/8"

4шт.

23

700117251

ARM

WA cylinder

1шт.

24

700117248

SUPPORT

WA cylinder

1шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
