(09-16) - ACTUATOR ASSEMBLY

Запчасти Case IH 8420 (09-16) - ACTUATOR ASSEMBLY Decals & Attachments

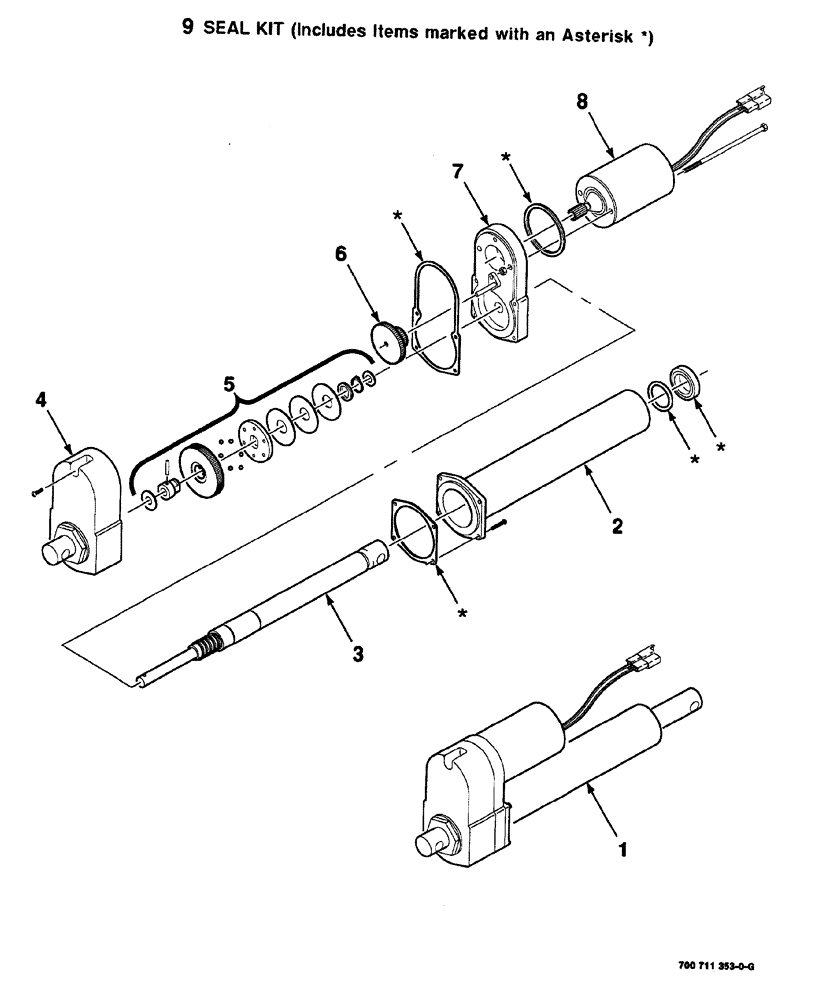

Схема запчастей Case IH 8420 - (09-16) - ACTUATOR ASSEMBLY Decals & Attachments
2
4
5
7
9
6
8
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711353

ACTUATOR

ASSY. complete

1шт.

2

700711355

COVER

ASSY. tube

1шт.

3

700711354

SCREW

drive, ACME

1шт.

4

700704854

HOUSING

rear

1шт.

5

700704873

CLUTCH ASSEMBLY

1шт.

6

91230C1

GEAR

ASSY. intermediate

1шт.

7

700711356

HOUSING

front

1шт.

8

700711359

MOTOR

ASSY.

1шт.

9

1281489C1

SEAL KIT

KIT repair, includes items marked with an asterisk on the illustration

1шт.
