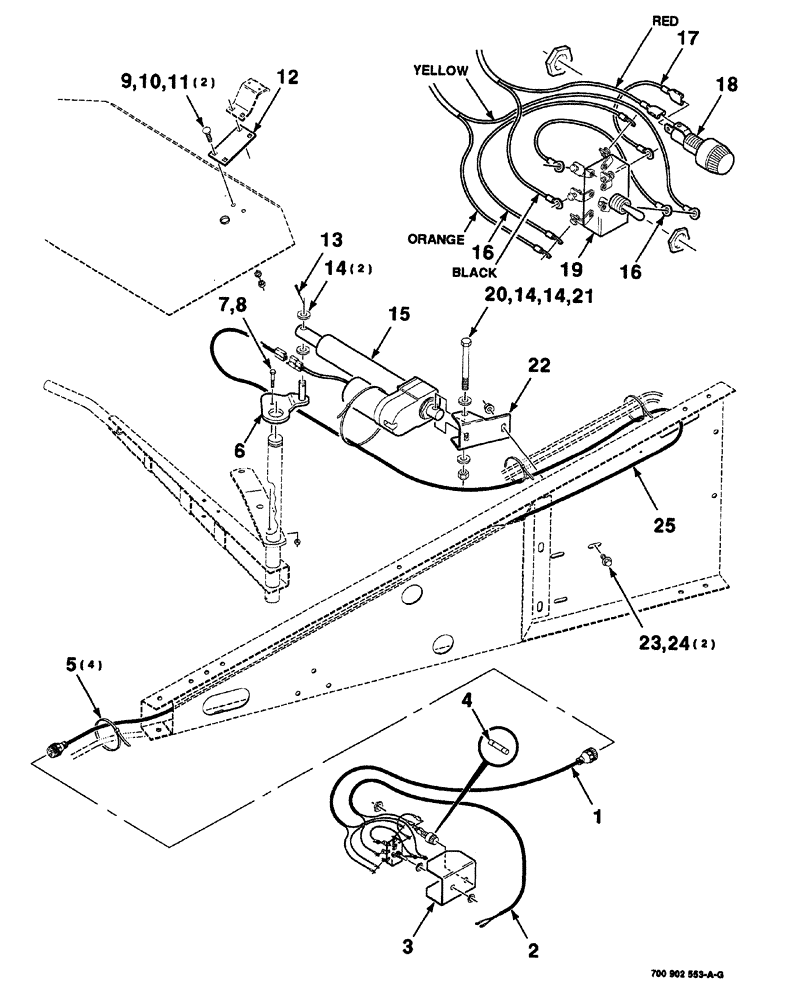

Запчасти Case IH 8420 (09-14) - ELECTRIC THREADER KIT Decals & Attachments

HK50592

TOOL

SPARE PART KIT electric threader, complete, ordered thru wholegoods only

1шт.

1

700710553

HARNESS

wire

1шт.

2

700710551

HARNESS

wire

1шт.

3

700122490

BRACKET

switch

1шт.

4

223-31

FUSE,10 Amp, Type 3AG

30 amp.

1шт.

5

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE nylon

4шт.

6

700125974

ARM

WA actuator

1шт.

7

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

8

232-4114

LOCK NUT,1/4"-20, GC

hex top, 1/4"-20, GR/B

1шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

10

492-11031

LOCK WASHER,5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

700126726

PLATE

1шт.

13

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2"

4шт.

15

700711353

ACTUATOR

ASSY. electric, see Figure 09-16

1шт.

16

722355

CABLE

WIRE electrical

2шт.

17

7723562

ELECTRICAL WIRE

WIRE electrical

1шт.

18

376852R91

HOUSING

HOLDER fuse

1шт.

19

7723372

SWITCH

1шт.

20

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

hex cap, 1/2"-13 x 4-3/4"

1шт.

21

230-4118

LOCK NUT,1/2"-13, GA

lock, hex top, 1/2"-13, GR/B

1шт.

22

700125977

ANGLE

actuator support

1шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

700710552

HARNESS

wire

1шт.
