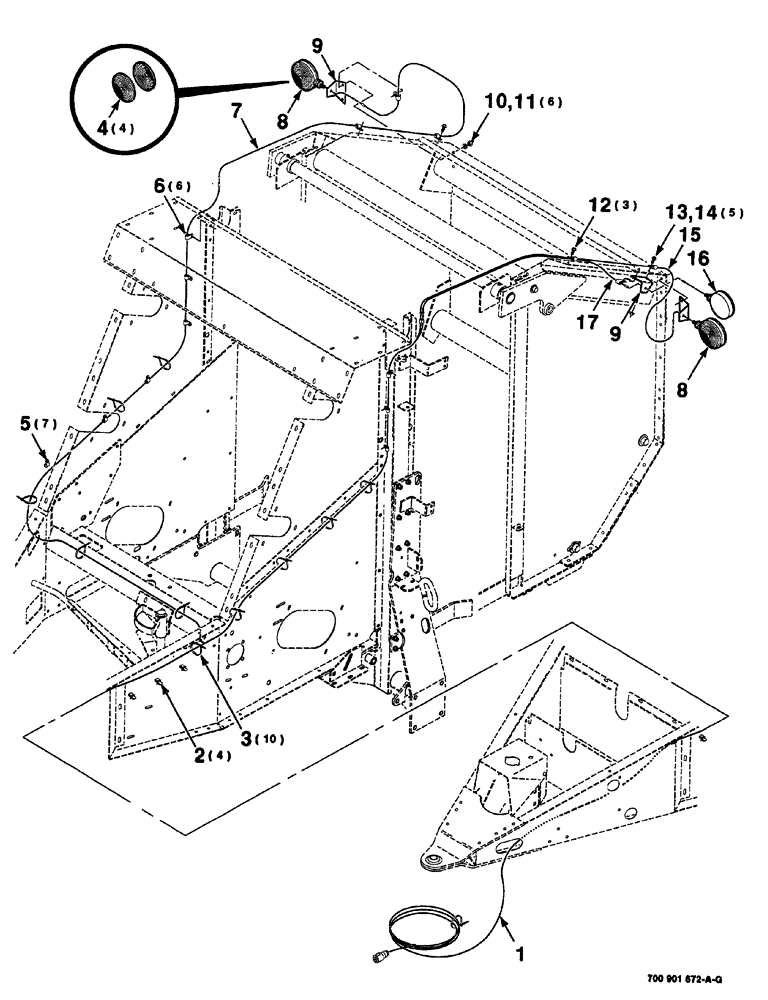

Запчасти Case IH 8420 (09-12) - WARNING LIGHT KIT Decals & Attachments

HK50456

KIT warning light, complete, to be ordered thru wholegoods only

1шт.

1

700707926

HARNESS

wire

1шт.

2

722496

CLIP

line

4шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

10шт.

4

700711749

LENS

light, flasher

4шт.

Part of Flasher Light P/N 700708036

1шт.

5

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

line

7шт.

6

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line

6шт.

7

700708075

ELECTRICAL WIRE

WIRE electric

1шт.

8

700708036

SIDE LAMP ASSY

flasher, Includes: Ref. 4

2шт.

9

700117560

ANGLE

mounting, light

2шт.

10

492-11038

LOCK WASHER,3/8"

6шт.

11

425-106

NUT,3/8"-16, Cl 5

6шт.

12

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

tapping, hex washer head thread cutting, 1/4"-20 x 1/2"

3шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

15

700708074

ELECTRICAL WIRE

WIRE electric

1шт.

16

700706634

STOP LIGHT

1шт.

17

700705121

WIRE

electric

1шт.
