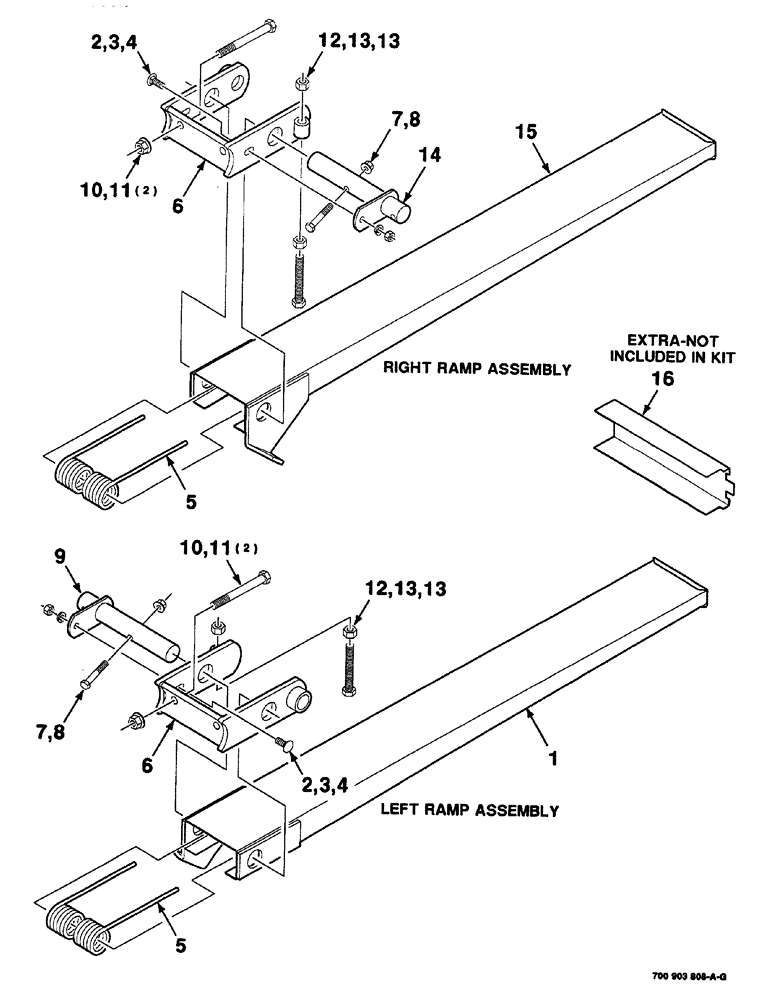

Запчасти Case IH 8420 (09-10) - RAMP KIT Decals & Attachments

HK50641

KNOCKER

KIT ramp, complete, to be ordered thru wholegoods only

1шт.

1

700129178

RAMP

WA left

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

7895642

TINE

TINE double

2шт.

6

700129180

MOUNTING PARTS

WA

2шт.

7

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8"-16, GR/G

2шт.

9

700129183

SHAFT

WA left

1шт.

10

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

SCREW hex cap, 1/2"-13 x 4-1/2"

4шт.

11

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2"-13, GR/G

4шт.

12

873422

CAPSCREW,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

cap, full thread hex, 1/2"-13 x 3-1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

4шт.

14

700129184

SHAFT

WA right

1шт.

15

700125953

RAMP

WA right

1шт.

16

700126731

PLATE

TEMPLATE, not included in kit

1шт.
