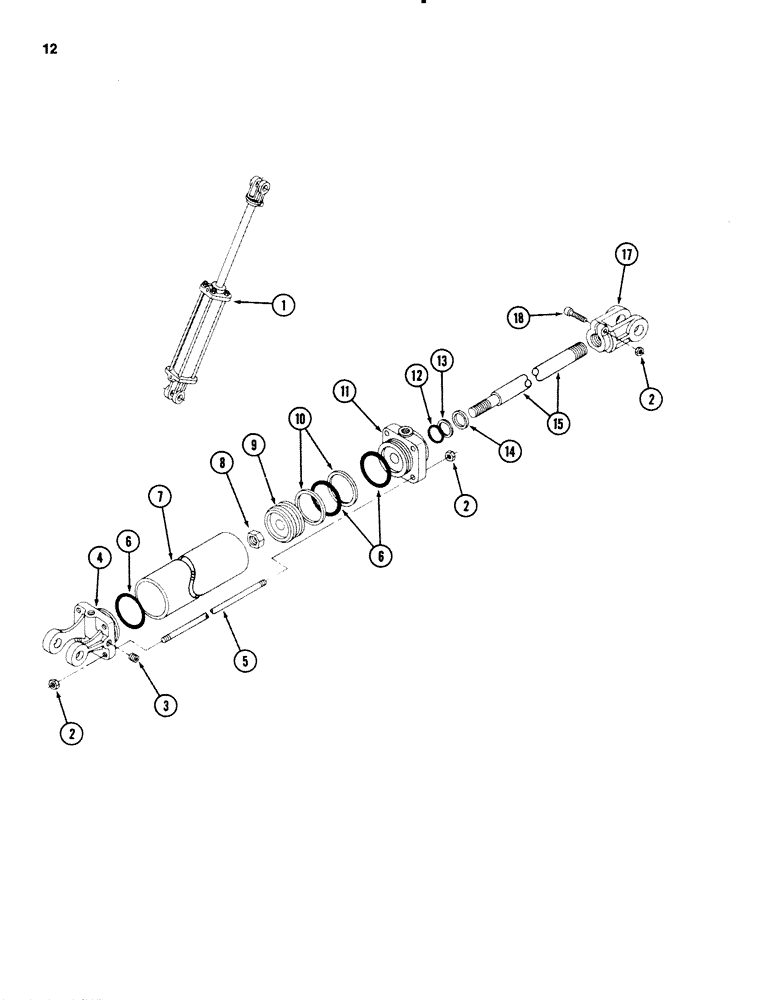

Запчасти Case IH 3650 (12) - HYDRAULIC LATCH CYLINDER, 2 INCH BORE (50 MM) X 16 INCH STROKE (406 MM)

1

ZA105500

CYLINDER ASSEMBLY - hydraulic

1шт.

2

120377

NUT,3/8" - 16, Gr 5

8шт.

3

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - square head automotive pipe, 3/8 inch

1шт.

4

ZA207021

BASE

- cylinder

1шт.

5

ZA105147

ROD

- tie

4шт.

6

NSS

NOT SOLD SEPARAT

O-RING

3шт.

Part of O-ring and Seal Kit, P/N ZA207009

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE (Order cylinder assembly)

1шт.

8

9413971

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

1шт.

9

851022C1

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of O-ring and Seal Kit, P/N ZA207009

1шт.

11

ZA207015

HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of O-ring and Seal Kit, P/N ZA207009

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of O-ring and Seal Kit, P/N ZA207009

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of O-ring and Seal Kit, P/N ZA207009

1шт.

15

ZA105146

ROD

- piston

1шт.

17

ZA207012

CLEVIS

1шт.

18

NLS

NO LONGER SERVICED

- hex socket head, 3/8 NC x 1-3/4 inch

1шт.

ZA207009

KIT

- o-ring and seal, Includes: ref. nos. 6, 10, 12, 13, 14

1шт.
