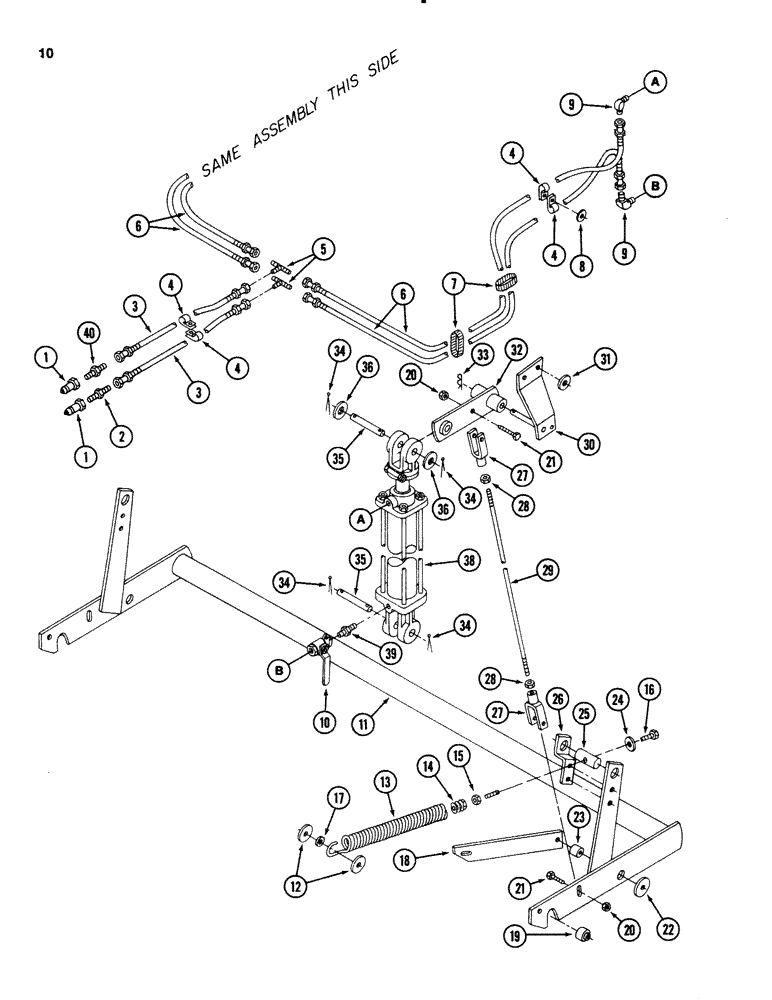

Запчасти Case IH 3650 (10) - HYDRAULIC SYSTEM AND LATCH

1

REF

INSTRUCTION

COUPLER - hydraulic (See Page 15)

2шт.

2

ZA105685

FITTING

- restrictor (.052 inch orifice)(P.I.N. 001531 and after)

1шт.

3

129768C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 115 inch (2921 mm) long

2шт.

4

27291R1

CLAMP

- hose

16шт.

5

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

- 3/8 tube x 9/16 - 18 inch thread

2шт.

6

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE ASSEMBLY - 105 inch (2667 mm) long (Replaces ZA105138)

4шт.

7

ZA105118

GUIDE

- hose

3шт.

8

611344R1

WASHER

- flat, 11/32 x 11/16 x 1/16 inch (8 x 17 x 1 mm)

8шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

8шт.

9

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, 3/8 NPTF

4шт.

10

ZA103758

VALVE

- rotary (Replaces ZA105143) (Also furnish nipple 443981)

2шт.

11

ZA105081

LATCH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

2шт.

12

21883R1

WASHER

- flat, 17/32 x 1-3/4 x 3/32 inch (13 x 44 x 2 mm)

8шт.

13

ZA761370

SPRING

1шт.

14

1281009C1

INSERT

PLUG - spring

2шт.

15

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

16

Q822

BOLT

- hex, 1/2 NC x 5-1/2 inch

2шт.

17

118777

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 26 x 2 mm)

8шт.

18

ZA105108

BAR

STIFFENER

2шт.

19

96339C1

CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025"

- cam follower (Replaces ZA015882)

2шт.

REF#19 FOR BOLT & NUT SEE 3640 PG 17 (PART NUMBER FOR BOLT IS 24621C1 (2) NUT - 359783C1 (2) 10/25/95 JMB

1шт.

20

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

21

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

22

23276R1

WASHER

- flat, 21/32 x 2 x 3/16 inch (16 x 50 x 4 mm)

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch

2шт.

23

1337296C1

SPACER

- (Replaces 754598R1)

2шт.

24

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 1/8 inch (13 x 31 x 3 mm)

2шт.

25

ZA104551

PIN

2шт.

26

ZA105060

CLIP

BRACKET - offset

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

27

ZA250536

YOKE

4шт.

28

120371

NUT,1/2"-20, G5

4шт.

29

ZA105132

ROD

- latch

2шт.

30

ZA105126

PIN

- left

1шт.

30

ZA105125

PIN

- right

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

31

614452R1

WASHER

- flat, 13/32 x 1-1/4 inch x 1/8 inch (10 x 31 x 3 mm)

4шт.

32

ZA105122

ARM

2шт.

33

407210R1

CLIP

PIN - klik (Package of 20)

2шт.

34

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

8шт.

35

63196C1

PIN

- clevis

4шт.

36

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 1/16 inch (26 x 38 x 1 mm)

8шт.

ZA207021

BASE

1шт.

38

ZA105000

CYLINDER

- hydraulic (Replaces ZA105150) (See Page 13)

2шт.

39

443981

CONNECTOR, ELEC

NIPPLE - auto pipe, 3/8 NPTF (Used with valve ZA103758 only)

1шт.

40

REF

INSTRUCTION

ADAPTER (See Page 15)

1шт.
