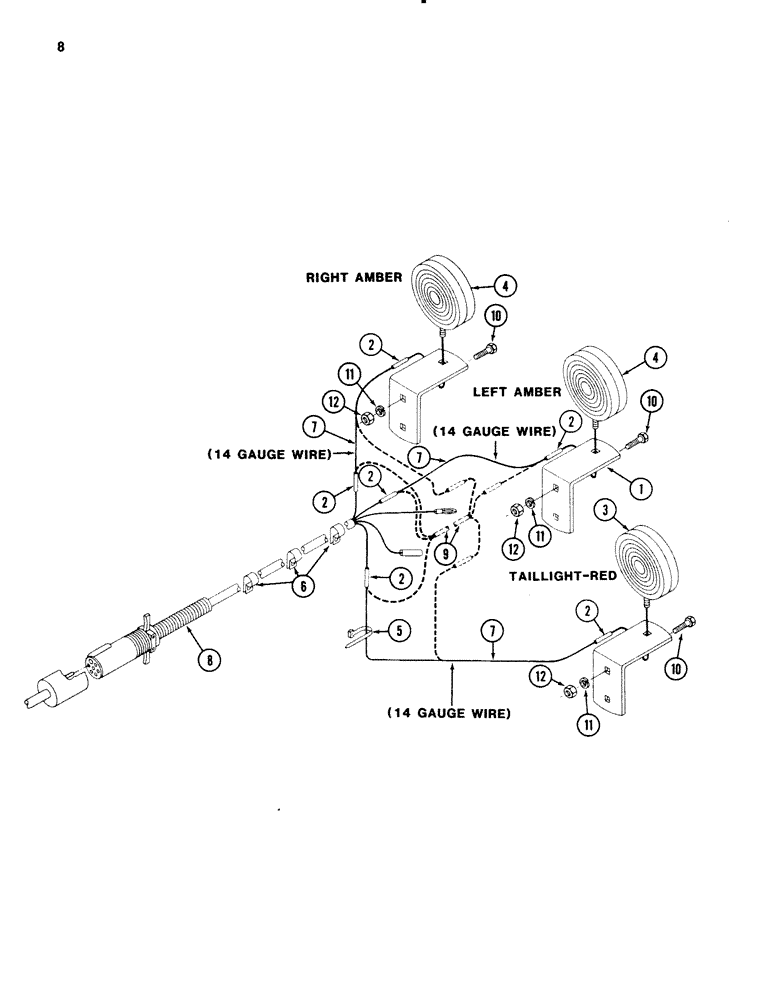

Запчасти Case IH 3650 (08) - FLASHING WARNING LIGHTS

1

ZA708451

BRACKET

- light

3шт.

2

ZA707964

TERMINAL CONNECTOR,14 - 16

TERMINAL

8шт.

3

ZA103734

LIGHT

- tail - (Red)

1шт.

9417866

BULB,C6, #1156, 12.8V

- LAMP (No. 1156)

1шт.

4

ZA103735

LIGHT

- flasher - (Amber)

2шт.

9417866

BULB,C6, #1156, 12.8V

- LAMP (No. 1156)

1шт.

5

291207C1

CLAMP

TIE - hose

12шт.

6

299614C1

CLAMP

- cable

3шт.

7

NSS

NOT SOLD SEPARAT

WIRE - 14GA x 30 foot long (Furnish from 100 foot roll marked 995055R1 - for 1 foot length)

1шт.

995055R1

CABLE

WIRE - 100 foot roll

1шт.

8

ZA104936

HARNESS

- lighting

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE - 14GA - 3 conductor (Furnish from 100 foot roll marked 997130R1 - for 1 foot length)

1шт.

997130R1

CABLE

WIRE - 100 foot roll

1шт.

10

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head, square neck, 5/16 NC x 1 inch

6шт.

11

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

120376

NUT,5/16"-18, G5

6шт.
