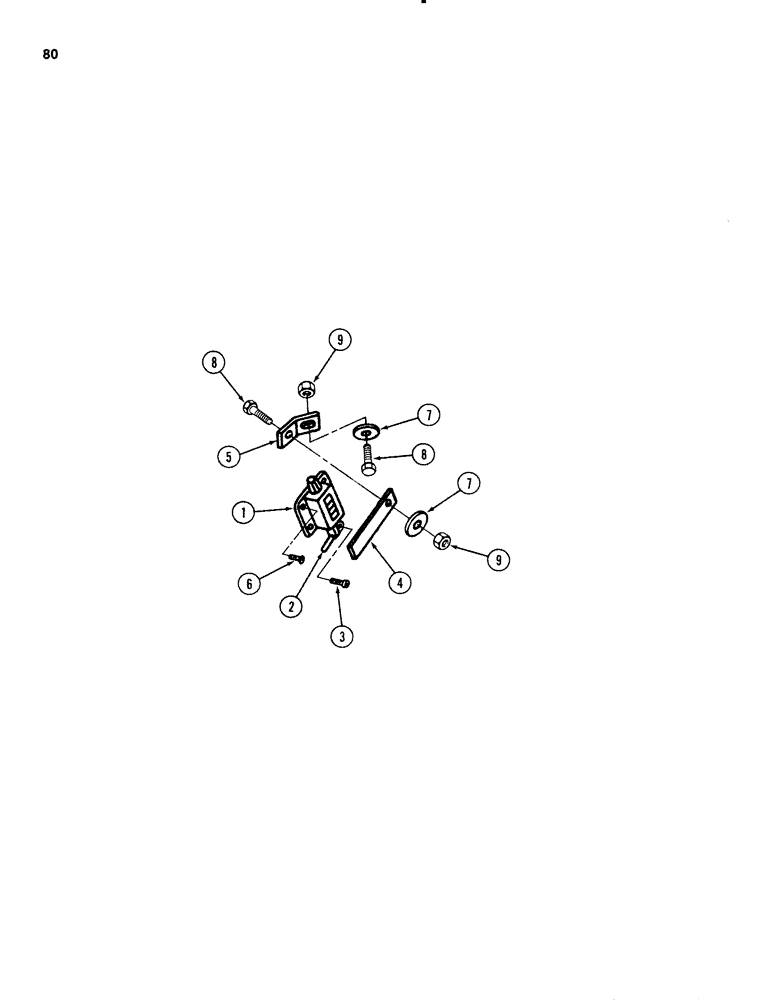

Запчасти Case IH 3650 (80) - BALE COUNTER

ZA105788

PACKAGE

KIT - bale counter

1шт.

1

ZA103965

COUNTER

- bale

1шт.

2

ZA103965

COUNTER

LEVER ASSEMBLY

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW - slotted head, No. 5-44 x 5/16 inch (Order lever 656707R91)

1шт.

4

ZA105135

SPRING

- flat

1шт.

5

ZA105136

CLIP

- angle

1шт.

6

159203

SCREW,Cross Pan Hd, #4 - 40 x 1/2"

- pan head cross recess, No. 4 x 1/2 inch

4шт.

7

21448R1

WASHER

- flat, 11/32 x 7/8 x 3/32 inch (8 x 22 x 2 mm)

2шт.

8

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

- hex, 5/16 inch NC

2шт.
