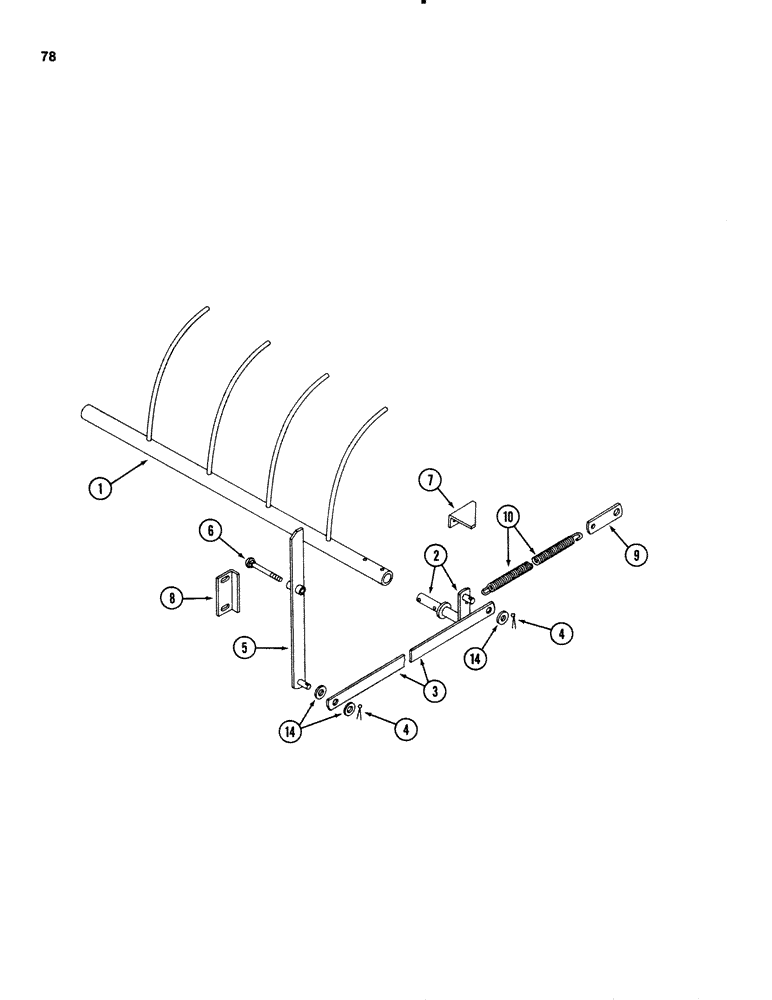

Запчасти Case IH 3650 (78) - TRIP GATE ATTACHMENT

1

ZA105528

GUIDE

GATE

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

2

ZA105536

SHAFT

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

ZA105533

STRAP

1шт.

4

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

ZA105531

LEVER

1шт.

6

26224R1

BOLT,Short NK, 5/8"-11 x 5", G5

- round head, square neck, 5/8 NC x 5 inch Type 5

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

7

ZA105546

BRACKET

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head, square neck, 5/16 NC x 1 inch Type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

ZA105537

ANGLE

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head, square neck, 3/8 NC x 1 inch Type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch (10 x 25 x 3 mm)

2шт.

9

ZA105547

ANCHOR

- spring

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

97767C1

SPRING

1шт.

14

495-11053

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 26 x 2 mm)

3шт.
