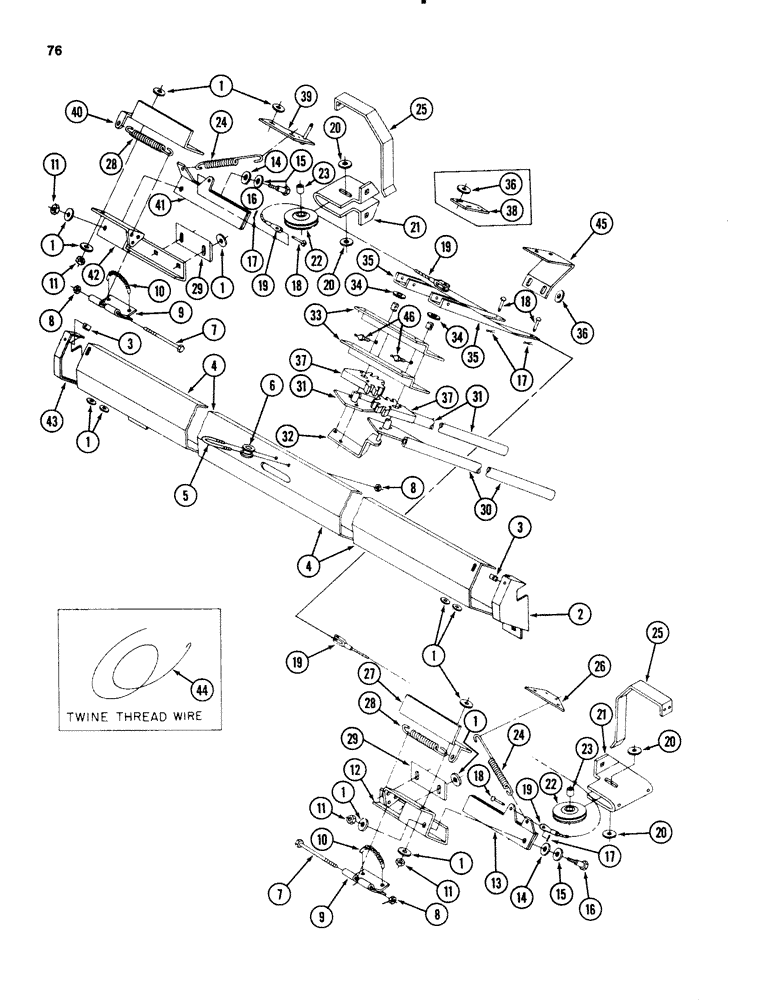

Запчасти Case IH 3650 (76) - DUAL ELECTRIC CONTROLLED TWINE THREADER

1

136764H1

WASHER - flat, 13/32 x 1-3/8 x 1/8 inch (10 x 34 x 3 mm)

16шт.

2

ZA105236

SHIELD

- end left

1шт.

3

488837C1

SPRING NUT

- speed

4шт.

4

ZA105167

SHIELD

1шт.

5

ZA105332

BOLT

U-BOLT

1шт.

6

ZA105333

GUIDE

- twine

1шт.

7

189293

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

- hex, 1/4 NC x 3-1/2 inch

2шт.

8

378531R1

LOCK NUT,1/4"-20, GA

NUT - hex lock, 1/4 inch NC

4шт.

9

ZA105271

CLAMP

- twine

2шт.

10

ZA746267

SPRING

2шт.

11

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC Type 8

4шт.

12

ZA105153

SUPPORT

- cutoff left

1шт.

13

ZA105273

ARM

- jam left

1шт.

14

133135C1

WASHER

WASHER

4шт.

15

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch (13 x 26 x 3 mm)

8шт.

16

96313C1

BOLT

2шт.

17

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

4шт.

18

138082

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 x 37/64 inch

4шт.

19

ZA105064

CABLE

2шт.

20

20893R1

WASHER

- flat, 11/32 x 7/8 x 3/32 inch (8 x 22 x 2 mm)

4шт.

21

ZA105063

SUPPORT

- pulley

2шт.

22

ZA206636

PULLEY

1шт.

23

ZA206630

SPACER

2шт.

24

ZA105331

SPRING

2шт.

25

ZA105292

GUIDE

- twine

2шт.

26

ZA105239

ANCHOR

- spring

1шт.

27

ZA105157

SUPPORT

TRIGGER - left

1шт.

28

ZA105197

SPRING

2шт.

29

ZA104892

KNIFE

2шт.

30

ZA105160

TUBE

TURBE - twine left

1шт.

31

ZA105161

TUBE

- twine right

1шт.

32

ZA105289

BRACKET

1шт.

33

ZA105051

SUPPORT

- arm

1шт.

34

20885R1

WASHER

- flat, 1-5/32 x 2 x 1/16 inch (29 x 50 x 1 mm)

1шт.

35

ZA105151

BRACKET

2шт.

36

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 1/16 inch (8 x 17 x 1 mm)

2шт.

37

ZA105065

GEAR

- spur, 6 teeth

2шт.

38

ZA105238

PLATE

MOUNT - switch (Prior to P.I.N. 00075)

1шт.

39

ZA105290

BRACKET

MOUNT

1шт.

40

ZA105156

SUPPORT

TRIGGER - right

1шт.

41

ZA105272

ARM

- jam right

1шт.

42

ZA105152

SUPPORT

- cutoff right

1шт.

43

ZA105235

SHIELD

- right

1шт.

44

ZA104769

ELECTRICAL WIRE

WIRE - twine thread (Replaces ZA104628)

1шт.

45

ZA104559

BRACKET

MOUNT - switch (P.I.N. 001180 thru 001530)

1шт.

46

87414

LUBE NIPPLE,1/4" - 28

FITTING - self tapping grease, 1/4-28 PTF

2шт.

ZA105804

CYLINDER

hydraulic tying-need for cross tube

1шт.

ZA105808

SHAFT

ROD, hydraulic tying-need for cross tube

1шт.

ZA105811

SEAL

SEAL, hydraulic tying-need for cross tube

1шт.

ZA103959

CYLINDER

for KMW tube, ref to 3640 illustr. for cyl only

1шт.

ZA104015

SHAFT

ROD, for KMW tube

1шт.

ZA516462

SEAL KIT

SEAL, for KMW tube

1шт.
