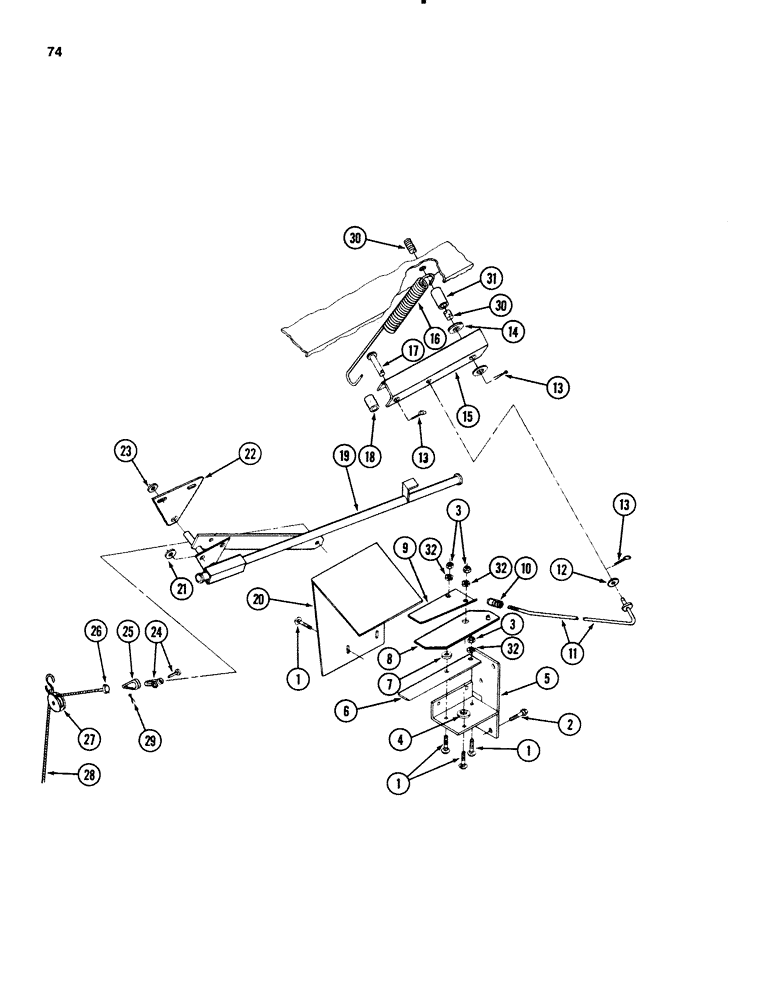

Запчасти Case IH 3650 (74) - MECHANICAL TWINE TIE AND CUT-OFF, PRIOR TO P.I.N. 000546

1

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

2

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

3

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

4

ZA103059

SPACER

1шт.

5

ZA104453

PLATE

- mounting

1шт.

6

ZA103057

KNIFE

1шт.

7

16561R1

WASHER - flat, 17/64 x 5/8 x 1/16 inch (6 x 15 x 1 mm)

4шт.

8

ZA104114

ARM

- jamming

1шт.

9

ZA103058

PLATE

- jam

1шт.

10

ZA103569

SOCKET

- ball

1шт.

11

ZA104112

ROD

- pull

1шт.

12

142619H

WASHER

- flat, 13/32 x 3/4 x 1/8 inch (10 x 19 x 3 mm)

1шт.

13

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

3шт.

14

21793R1

WASHER

- - flat, 11/16 x 1-1/4 x 1/8 inch (17 x 31 x 3 mm)

2шт.

15

ZA103049

LEVER

1шт.

16

ZA103052

SPRING

1шт.

17

22752R1

SPLIT PIN/SAFETY PIN

PIN - headed, 3/8 x 2-1/4 inch

1шт.

18

ZA103050

ROLLER

1шт.

19

ZA103047

ARM

- twine

1шт.

20

ZA104501

SHIELD

- knife

1шт.

21

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch (10 x 25 x 3 mm)

1шт.

22

ZA104397

PLATE

- housing

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head, sqaure neck, 5/16 NC x 3/4 inch Type 5

2шт.

23

619855R1

WASHER

- flat, 5/16 x 3/4 x 3/64 inch (7 x 19 x 1 mm)

2шт.

24

ZA103507

CLEVIS

1шт.

25

ZA103509

PULLEY

THIMBLE - rope

1шт.

26

ZA104123

CLAMP

1шт.

27

ZA103512

PULLEY

ASSEMBLY

1шт.

28

NSS

NOT SOLD SEPARAT

ROPE - nylon, 5/16 x 204 inch long (Purchase locally)

1шт.

29

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

30

ZA104544

PIN

1шт.

31

140220R1

SPACER,3/4" X-Strng Pipe x 2 1/8"

- pipe, 3/4 x 2-1/8 inch

1шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.
