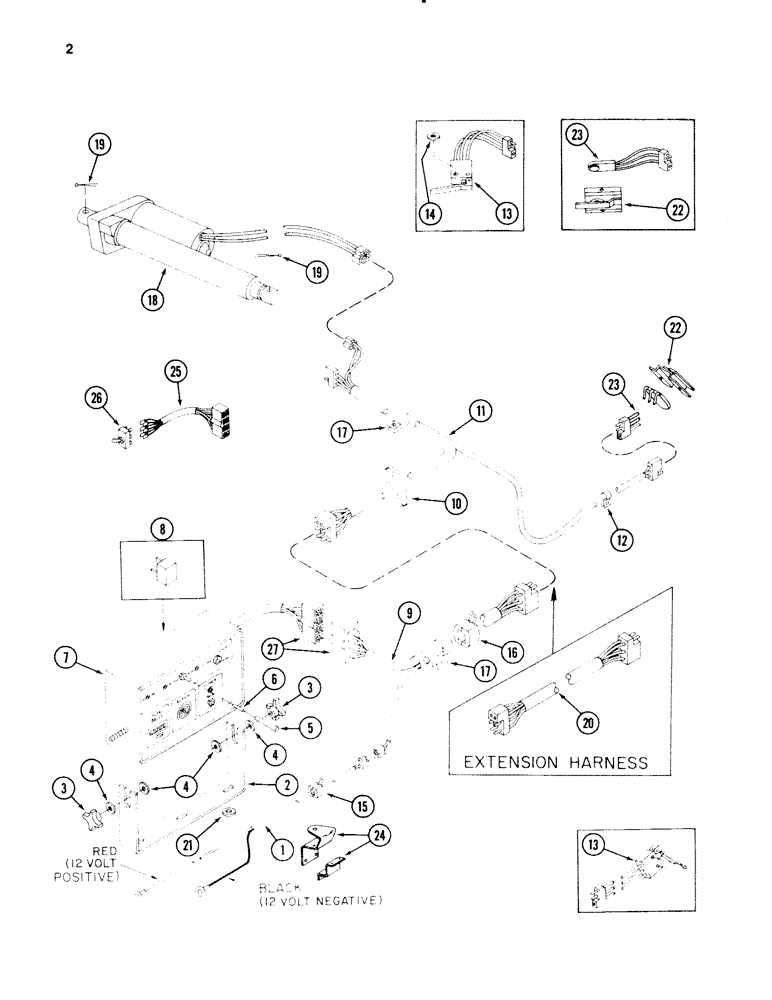

Запчасти Case IH 3650 (02) - CONTROL BOX, ACTUATOR AND HARNESS

1

ZA104615

HARNESS

- tractor

1шт.

2

ZA105277

BRACKET

- control box

1шт.

3

ZA103773

PACKAGE

- hardware

1шт.

4

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/6 inch (7 x 15 x 1 mm)

4шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

4шт.

5

ZA734450

HANDLE

1шт.

6

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

7

ZA105892

CONTROL

BOX - control (New) (Replaces ZA105894)

1шт.

Per Agri-tronic corp., the on - off, in - out switch that works with items 5 and 6 is their P/N 1000-2230. This is still available. No Case P/N assigned. Dlr can order direct from vendor.

1шт.

7

ZA105893

CONTROL

BOX - control (Remanufactured) (Replaces ZA105895 and 1254051C1)

1шт.

1261437C1

LAMP

BULB - lamp (No. 37)

1шт.

8

131181C1

RELAY

1шт.

9

ZA104616

HARNESS

- control box

1шт.

10

291207C1

CLAMP

TIE - hose

4шт.

11

ZA105198

HARNESS

- baler

1шт.

12

299404C1

CLAMP

CLIP - harness

8шт.

13

ZA104641

SWITCH

(prior to P.I.N. 000755)

2шт.

436668

SCREW - slotted pan head, No. 6 x 7/8 inch

2шт.

134530

NUT,Hex, #6 - 32

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

14

27305R1

WASHER

- flat, 5/32 x 3/8 x 1/32 inch (3 x 9 x 1 mm)

2шт.

15

ZA104394

BUSHING

1шт.

16

169851C1

GROMMET

BUSHING

1шт.

17

299407C1

CLAMP

CLIP - harness

4шт.

18

ZA105658

ACTUATOR

(Replaces ZA105049) (See Pages 5 and 7)

1шт.

19

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

20

ZA103745

HARNESS

- extension

1шт.

21

179454C1

RUBBER WASHER

- rubber

2шт.

22

ZA104562

COVER

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - slotted round head, No. 10 x 1/2 inch

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

26303R1

HARDWARE,#10-24

NUT - hex, No. 10

2шт.

120391

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch (5 x 12 x 1 mm)

2шт.

23

ZA103633

SWITCH

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - slotted round head, No. 10 x 1/2 inch

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

26303R1

HARDWARE,#10-24

NUT - hex, No. 10

2шт.

120391

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch (5 x 12 x 1 mm)

2шт.

24

1261522C91

BRACKET, SUPPORTING

BRACKET - cab mounting (Used to mount control box)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head, square neck, 5/16 NC x 3/4 inch

4шт.

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

ZA105270

HARNESS

- emergency (Temporarily operators actuator) (Also order Switch 91774C1)

1шт.

26

91774C1

ASSEMBLY

SWITCH

1шт.

27

ZA105438

KIT

- connector

1шт.

245430C1

CONNECTOR, ELEC

CONNECTOR - male, 8 terminal

1шт.

3195530R1

CONNECTOR, ELEC

CONNECTOR - female, 8 terminal

1шт.

877291R1

ELEC CONNECTOR,Female

CONNECTOR - male, 2 terminal

1шт.

877290R1

CONNECTOR - female, 2 terminal

1шт.

739145C1

ELEC. TERMINAL PIN,Male, 3 - 5 mm2

TERMINAL - male, 1/4 inch long blade

10шт.

739067C1

TERMINAL CONNECTOR,Female, 5 mm2

TERMINAL - female, 1/4 inch

10шт.

232773A1

SWITCH

baler density, mounted on back door.

1шт.

ZA104561

BRACKET

also available, would be to the right of ref. 22 on art.

1шт.
