Запчасти Case IH 3650 (70) - TWINE BOX AND BALE INDICATOR LIGHT, MECHANICAL TIE BALERS, PRIOR TO P.I.N. 000546

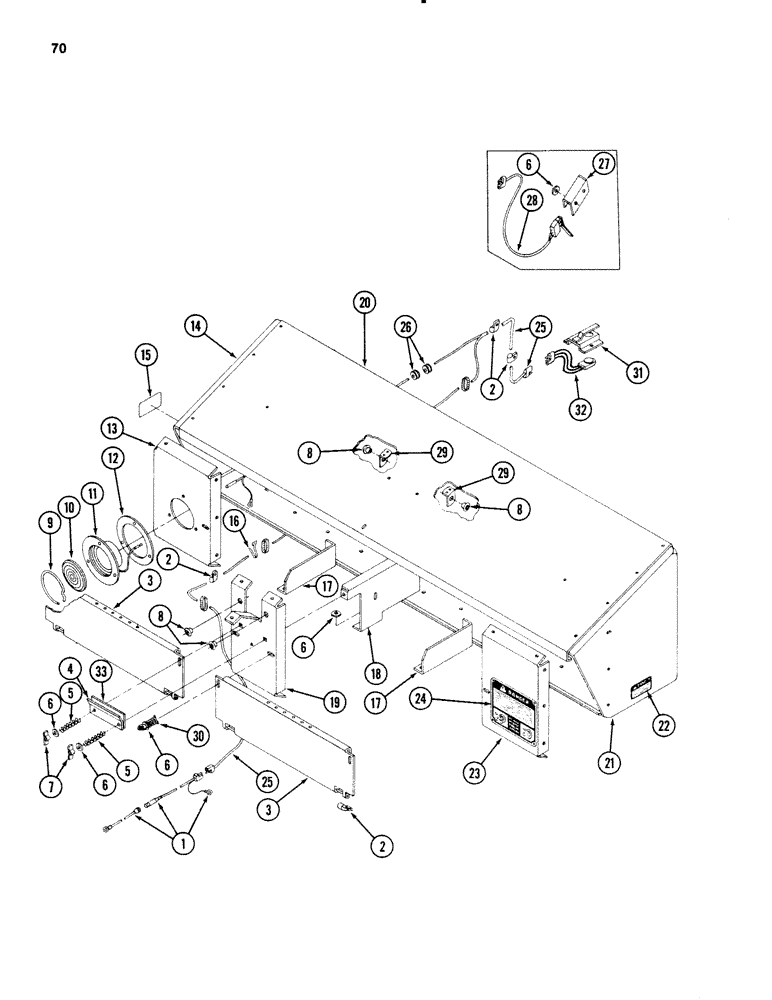

Схема запчастей Case IH 3650 - (70) - TWINE BOX AND BALE INDICATOR LIGHT, MECHANICAL TIE BALERS, PRIOR TO P.I.N. 000546

Артикул

Название

Примечание

Количество

1

ZA105101

HARNESS

1шт.

3118918R1

FUSE

- 3 AG 5 amperes

1шт.

2

299402C1

CLAMP

7шт.

3

ZA104483

DOOR

2шт.

598806R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

BOLT - round head, square neck, 5/16 NC x 1-3/4 inch Type 5

2шт.

4

ZA105436

BAR

TENSIONER (Replaces ZA105168) (Also order backup ZA105437)

1шт.

5

1254042C1

SPRING

2шт.

6

611344R1

WASHER

- flat, 11/32 x 7/8 x 1/16 inch (8 x 22 x 1 mm)

1шт.

7

924137R1

NUT

- wing

2шт.

8

96316C1

GUIDE

- rope

1шт.

9

ZA732614

RING, SNAP

RING - retaining

1шт.

10

ZA732613

LENS

- amber

1шт.

11

ZA105024

LIGHT

INDICATOR

1шт.

12

ZA732615

GASKET

1шт.

13

ZA105102

BRACKET

- right

1шт.

14

ZA105184

PLATE

ENDPLATE - right

1шт.

15

ZA104136

DECAL

- danger

1шт.

16

291207C1

CLAMP

TIE - hose

5шт.

17

ZA104481

DIVIDER

4шт.

18

ZA104459

BRACKET

1шт.

19

ZA104248

BRACKET

1шт.

20

ZA104247

COVER

- twine box

1шт.

21

ZA105185

PLATE

ENDPLATE - left

1шт.

22

ZA104136

DECAL

- danger

1шт.

23

ZA105189

BRACKET

1шт.

24

ZA104781

PRODUCT GRAPHIC

DECAL - danger

1шт.

25

ZA105100

HARNESS

1шт.

26

127979

GROMMET,3/4" ID x 1 3/8" x .062", Diag Cut

- harness

2шт.

27

ZA105068

BRACKET

- switch (Prior to P.I.N. 000525)

1шт.

28

ZA104641

SWITCH

- (Prior to P.I.N. 000525)

1шт.

436668

SCREW - an head slotted, No. 6 x 7/8 inch

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

2730R1

WASHER - flat, 5/32 x 3/8 x 1/32 inch (3 x 9 x 1 mm)

1шт.

29

ZA104538

BRACKET

2шт.

30

188029C1

LATCH

FASTENER - camlock

4шт.

31

ZA104562

COVER

BRACKET - switch (P.I.N. 000526 and after)

1шт.

32

ZA103633

SWITCH

(P.I.N. 000526 and after)

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - round head, slotted, No. 10 x 1/2 inch

2шт.

26303R1

HARDWARE,#10-24

NUT - machine screw, No. 10

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch (5 x 12 x 1 mm)

1шт.

33

ZA105437

PLATE

BACKUP - tensioner

1шт.

Выбрано товаров: 43
