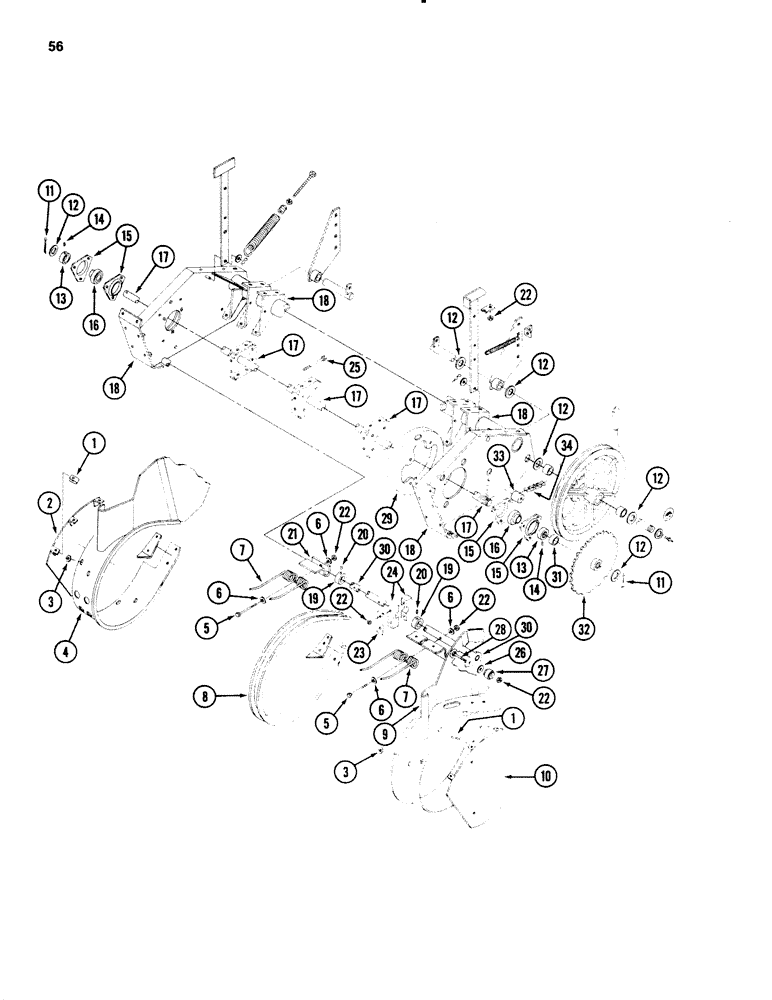

Запчасти Case IH 3650 (56) - PICKUP, PRIOR TO P.I.N. 001179

1

488837C1

SPRING NUT

- speed, 5/16 inch

8шт.

2

ZA104585

FILLER

- right

1шт.

3

102393

WASHER

- flat, 11/32 x 11/16 x 1/16 inch (8 x 17 x 1 mm)

12шт.

4

ZA104276

BAND

- end right

1шт.

5

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

44шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

44шт.

6

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm)

44шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

7

ZA103012

TOOTH

FINGER - spring

44шт.

8

ZA105424

TINE BAR

BAND (Replaces ZA104257)

21шт.

9

ZA104277

BAND

- end left

1шт.

10

ZA104584

FILLER

- left

1шт.

11

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

12

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 1/16 inch (32 x 44 x 1 mm)

1шт.

13

557995R11

COLLAR

- locking

2шт.

14

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - allen head cup point set, 5/16 NC x 5/16 inch

2шт.

15

662649R1

RETAINER

HOUSING - bearing

4шт.

16

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

- 1-1/4 inch ID (31 mm)

2шт.

17

ZA103775

REEL

- pickup

1шт.

18

ZA103757

FRAME

- pickup

1шт.

19

517645R11

COLLAR

- with set screw, locking

8шт.

20

102892

SET SCREW

- square head, cup point set, 3/8 NC x 1/2 inch

8шт.

21

ZA105148

CLAMP

- spring finger

4шт.

22

9143979

NUT - hex lock, 3/8 inch NC

1шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

23

ZA718159

PLATE

- bearing

12шт.

24

ZA761580

CAP

- bearing half (Center and right end of reel)

16шт.

24

ZA105582

BEARING HALF,1"

CAP - bearing half (Left end of reel) (Sintered iron bearing half must not be mated with platic bearing half used on left end next to cam)

8шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

25

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

24шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

26

390305C1

WASHER

- flat hardened 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm)

4шт.

27

96339C1

CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025"

- cam follower (Replaces ZA015882)p

4шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

28

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

4шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

29

ZA105772

CAM

- pickup (Replaces ZA760048)

1шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

28шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

30

ZA105526

BAR

- pickup

4шт.

Part of Pickup Service Kit, P/N ZA105428

1шт.

31

298274R1

BUSHING

SPACER - tube (Replaces 614614R1)

1шт.

32

ZA761609

SPROCKET ASSY.

SPROCKET - 20 teeth

1шт.

33

ZA712225

SLIDE

- chain

1шт.

34

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY (Use 33 links from roll marked 569089R91, 1 offset link 456929R91 and 1 connecting link 587372R91) (For power reduction use 31 links)

1шт.

45929R91

LINK - offset

1шт.

587972R91

LINK - connecting

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot (3.048 m) roll

1шт.

ZA105428

KIT

- pickup service, Includes: ref. nos. 6, 22, 24, 25, 27, 28, 29, 30, P/N 109454

1шт.
