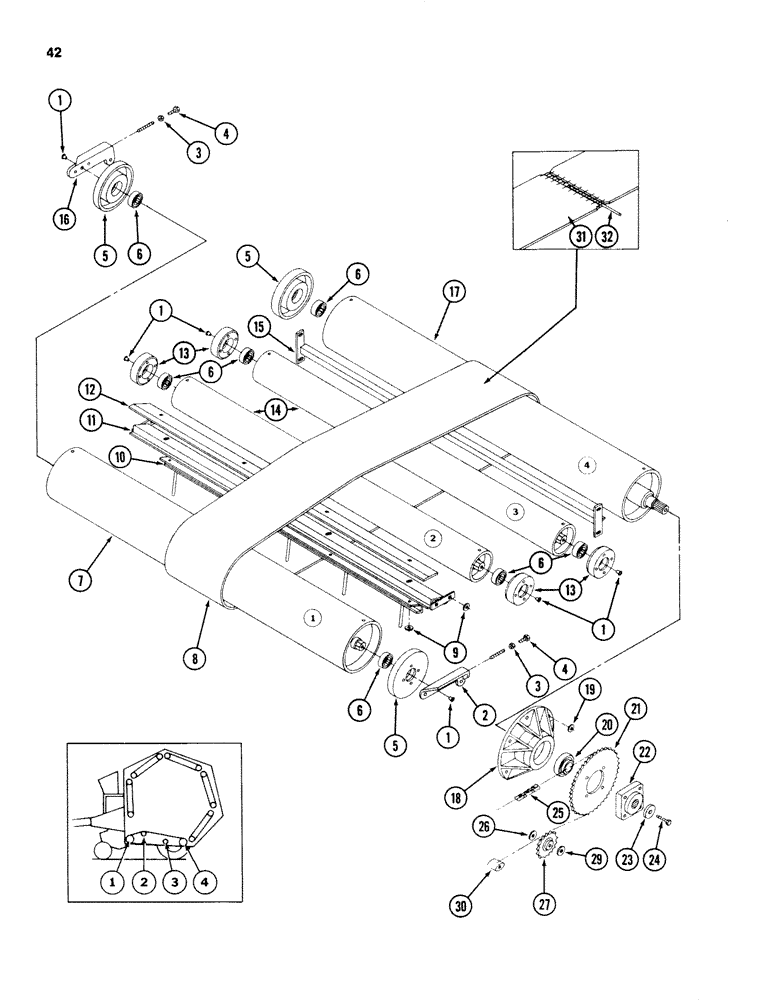

Запчасти Case IH 3650 (42) - BELTS & ROLLER ASSYS 1 - 4,MACHINES W/ 1-1/4" (31 MM) ID HEX BORE BEARINGS, P.I.N. 001531 & AFTER

1

1017954R1

PLUG,Cap, .485" OD

- cap

1шт.

2

ZA105070

BLOCK

- adjusting right

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

2шт.

3

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

4

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT - hex, 1/2 NC x 3-1/2 inch

2шт.

5

ZA105797

COLLAR

- bearing

3шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

8шт.

6

ZA105794

BALL BEARING

BEARING - hex bore, 1-1/4 inch ID (31 mm)

7шт.

7

ZA105778

ROLLER

(No. 1) (Note A)

1шт.

8

ZA104411

BELT

- Bottom endless

5шт.

9

21448R1

WASHER

- flat, 11/32 x 7/8 x 3/32 inch (8 x 22 x 2 mm)

6шт.

10

ZA105071

DIVIDER

1шт.

11

ZA105025

BRACKET

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head, square neck, 5/16 NC x 3/4 inch

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

12

ZA105023

BLADE

SCRAPER

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

13

ZA105796

COLLAR

- bearing

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

8шт.

14

ZA105775

ROLLER

(No. 2 and 3) (Note B)

1шт.

15

ZA105020

BLADE

SCRAPER

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head, square neck, 5/16 NC x 3/4 inch Type 5

4шт.

16

ZA105069

BLOCK

- adjusting right

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

2шт.

17

ZA105780

ROLLER

(No. 4) (Note C)

1шт.

18

ZA105019

HOUSING

- bearing

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

- round head, square neck, 3/8 NC x 1-1/4 inch

5шт.

19

27503R1

WASHER

- flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm)

5шт.

20

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

- 1.5753 inch ID (40 mm)

1шт.

21

ZA104230

SPROCKET ASSY.

SPROCKET - 40 teeth

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

22

ZA104593

HUB

- splined

1шт.

23

357020R1

WASHER

- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 mm)

1шт.

24

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex lock, 1/2 NC x 1-1/4 inch Type 8

1шт.

25

NSS

NOT SOLD SEPARAT

CHAIN - (Use 171 links from roll marked 611362R91, 1 offset link 612612R91 and 1 connecting link 574532R91)

1шт.

611362R91

CHAIN (AG)

CHAIN - 10 foot (3.048 m) roll

1шт.

612612R91

CHAIN LINK

LINK - offset

1шт.

574532R91

CLIP, SPRING

LINK - connecting

1шт.

26

131016

WASHER

- flat, 21/32 x 1-3/8 x 1/16 inch (16 x 34 x 1 mm)

2шт.

27

541857R92

SPROCKET,15T

- idler

1шт.

29

446470

BRAKE FLUID TANK

- flat, 3/8 x 1-1/8 x 3/32 inch (9 x 28 x 2 mm)

1шт.

30

ZA304776

SLIDE

- chain

1шт.

37464R1

BOLT - round head, square neck, 1/2 NC x 4 inch Type 5

1шт.

31

ZA104108

BELT

5шт.

32

ZA102977

PIN

5шт.

208790C1

PACKAGE

KIT - belt repair (Box of lacing hooks)

1шт.

1254050C1

TOOL

LACER - belt (6 inch)

1шт.
