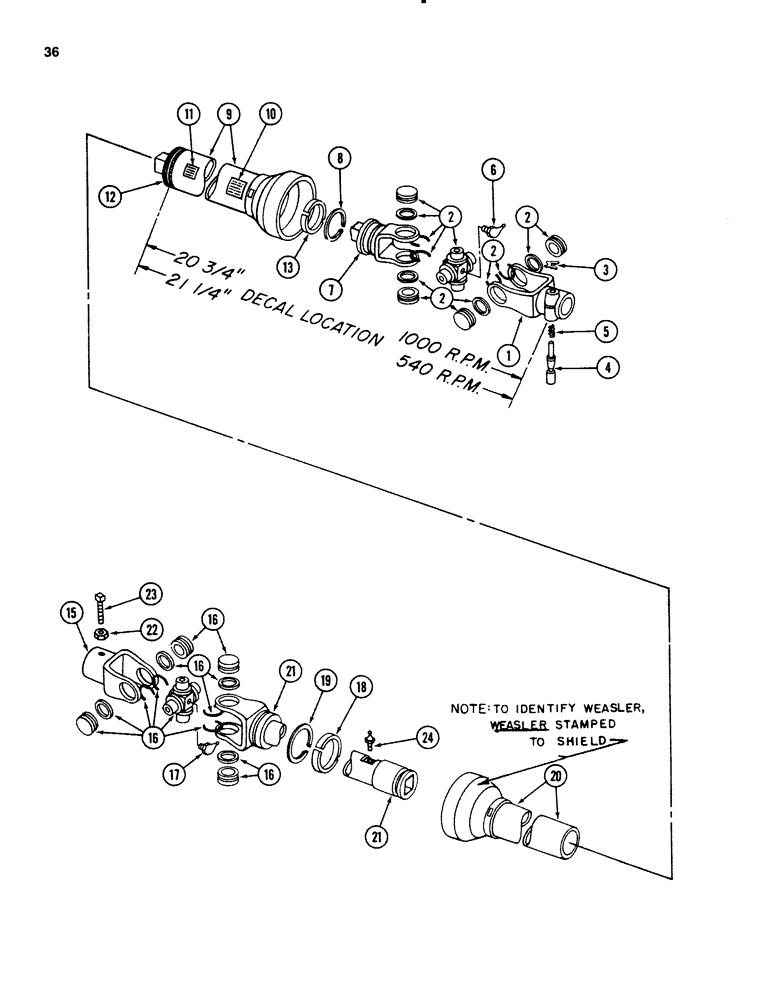

Запчасти Case IH 3650 (36) - POWER TAKE OFF DRIVE SHAFT, WEASLER, P.I.N. 000756 THROUGH 001530

96347C1

JOINT

ASSEMBLY - universal, tractor half (540 RPM)

1шт.

96346C1

JOINT

ASSEMBLY - universal, tractor half (1000 RPM)

1шт.

1

660484R21

FORK

YOKE - 540 RPM

1шт.

1

133317C1

YOKE

- 1000 RPM

1шт.

2

480613R91

KIT

- cross

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- x

1шт.

4

455346R21

PIN

- quick lock, 540 RPM

1шт.

4

136015C1

PIN

- quick lock, 1000 RPM

1шт.

5

455347R1

VALVE SPRING

SPRING - lock pin

1шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 1/8 pt 65 degree

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT (Order complete assembly)

1шт.

8

597559R1

RETAINER

RING - bearing retaining

1шт.

9

96350C1

SHIELD

- 540 RPM

1шт.

10

96335C1

PRODUCT GRAPHIC

DECAL - warning

1шт.

11

96319C1

DECAL

- 540 RPM

1шт.

11

96322C1

PRODUCT GRAPHIC

DECAL - 1000 RPM

1шт.

12

1253795C1

DECAL

- hitch advance

1шт.

13

96348C1

NYLON BEARING

- plastic

1шт.

1336830C1

JOINT

ASSEMBLY - universal, implement half

1шт.

15

664179R1

YOKE

1шт.

REF#15-THERE TWO OTHER YOKES AVAILABLE

1шт.

540 RPM ORDER ZA105851 AND ALSO A 1000 RPM

1шт.

ORDER ZA105852. 7/29/96

1шт.

16

480613R91

KIT

- cross

1шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 1/8 pt 65 degree

1шт.

18

96349C1

BEARING

- plastic

1шт.

19

597559R1

RETAINER

RING - bearing retaining

1шт.

20

96351C1

SHIELD

- rear

1шт.

21

NSS

NOT SOLD SEPARAT

TUBE (Order complete assembly)

1шт.

22

124934

HOSE

- hex jam, 1/2 inch NF

1шт.

23

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - set, 1/2 NF x 1-3/16 inch

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.
