Запчасти Case IH 3650 (34) - POWER TAKE OFF DRIVE SHAFT, HAYES DANA, P.I.N. 000501 THROUGH 000755

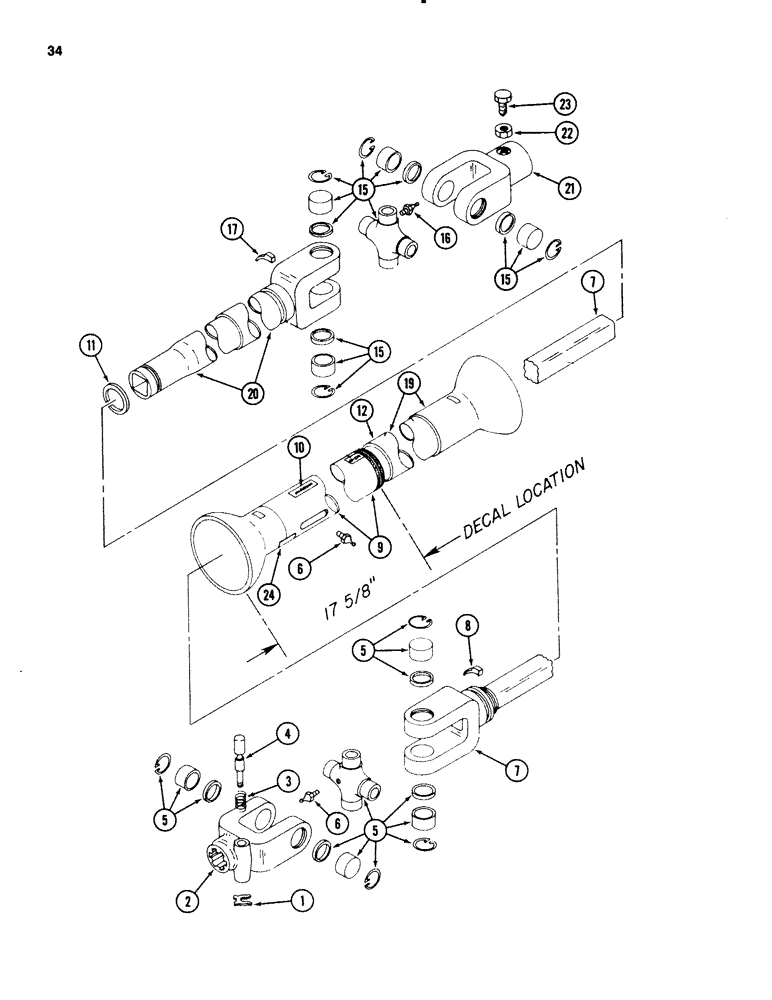

Схема запчастей Case IH 3650 - (34) - POWER TAKE OFF DRIVE SHAFT, HAYES DANA, P.I.N. 000501 THROUGH 000755

Артикул

Название

Примечание

Количество

ZA104493

JOINT

ASSEMBLY - universal tractor half (540 RPM)

1шт.

ZA104492

JOINT

ASSEMBLY - universal, tractor half (1000 RPM)

1шт.

1

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- x

1шт.

2

660484R21

FORK

YOKE - 540 RPM

1шт.

2

133317C1

YOKE

- 1000 RPM

1шт.

3

455347R1

VALVE SPRING

SPRING - lock pin

1шт.

4

455346R21

PIN

- quick lock, 540 RPM

1шт.

4

136015C1

PIN

- quick lock, 1000 RPM

1шт.

5

480613R91

KIT

- cross

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

7

ZA104495

SHAFT

1шт.

8

542956R1

NYLON BEARING,0.312"

- plastic

3шт.

9

96340C1

SHIELD

- 540 RPM

1шт.

9

96321C1

SHIELD

- 1000 RPM

1шт.

10

96319C1

DECAL

- caution 540 RPM

1шт.

10

96322C1

PRODUCT GRAPHIC

DECAL - caution 1000 RPM

1шт.

11

96323C1

BUSHING

- shield support

1шт.

12

1253795C1

DECAL

- hitch advance

1шт.

ZA104496

JOINT

ASSEMBLY - universal, implement half

1шт.

15

480613R91

KIT

- cross

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

17

542956R1

NYLON BEARING,0.312"

- plastic

3шт.

19

96341C1

SHIELD

- rear

1шт.

20

NSS

NOT SOLD SEPARAT

TUBE - (Order ZA104496)

1шт.

21

664179R1

YOKE

1шт.

22

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex jam, 1/2 inch NF

1шт.

23

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - hex set, 1/2 NF x 1-3/16 inch

1шт.

24

96335C1

PRODUCT GRAPHIC

DECAL - warning

1шт.
