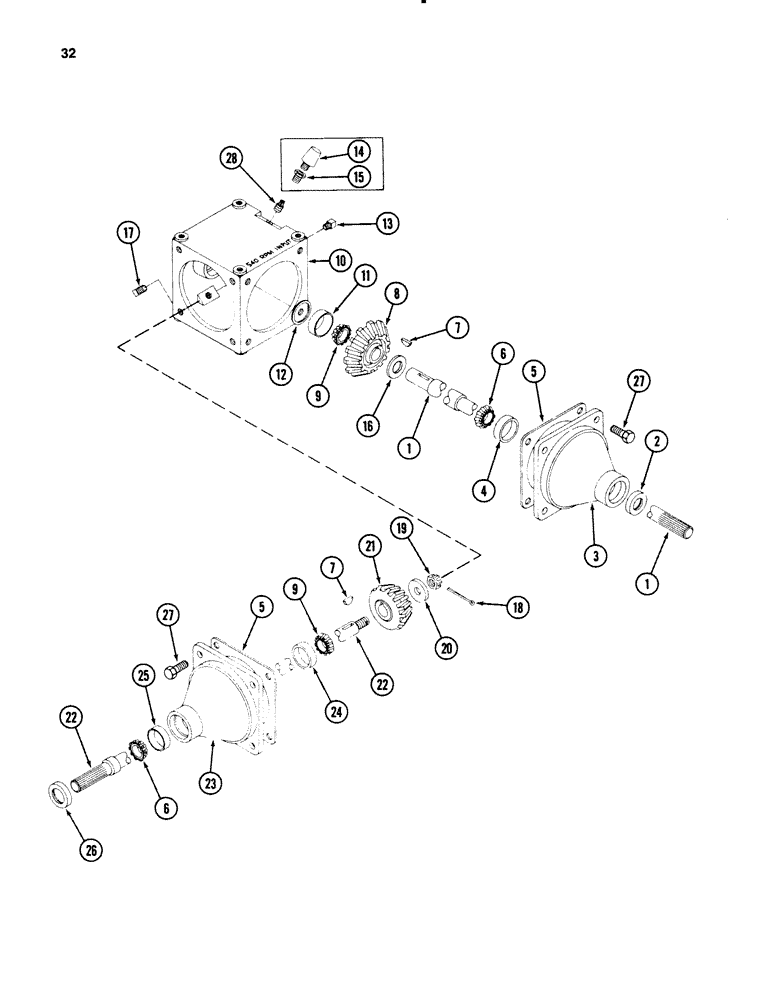

Запчасти Case IH 3650 (32) - GEAR BOX

1

ZA103637

SHAFT

(Prior to P.I.N. 001530)

1шт.

1

ZA105687

SHAFT

(With lock groove for constant velocity PTO shaft) (P.I.N. 001531 and after)

1шт.

2

96325C1

OIL SEAL

SEAL oil, 2-1/2 OD (63.5 mm)

1шт.

3

ZA103721

TUBE

- bearing

1шт.

4

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - bearing, 2.362 OD (60 mm)

1шт.

5

96342C1

SHIM

- 0.0005 inch (0.127 mm)

4шт.

5

96343C1

SHIM

- 0.020 inch (0.050 mm)

4шт.

6

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

CONE - bearing, 1.378 ID (35 mm)

2шт.

7

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY - woodruff, 5/16 x 1 inch (7 x 25 mm)

2шт.

8

ZA103627

GEAR

- 26 tooth (Cut tooth) (Used only with gear ZA103626) (Prior to P.I.N. 001530) (See Note)

1шт.

8

ZA105434

GEAR

- 26 tooth (Forged) (Used only with gear ZA105433) (P.I.N. 001531 and after) (See Note)

1шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, 1-3/8 ID (34 mm)

2шт.

10

ZA103720

BOX

GEAR BOX

1шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-9/16 OD (65 mm)

1шт.

12

96344C1

SHIM

- 0.0005 inch (0.127 mm)

2шт.

12

96345C1

SHIM

- 0.020 inch (0.050 mm)

1шт.

13

9617020

PLUG,1/4" - 18 x 0.48"

- Hex Socket automotive pipe, 1/4 - 18 NPT

1шт.

14

NSS

NOT SOLD SEPARAT

BREATHER - (Order breather ZA103653)

1шт.

15

27327R1

BUSHING - pipe, 1/2 NPT x 3/4 NPT

1шт.

16

ZA104574

WASHER

- champfered

1шт.

17

20969R1

PLUG

- square head pipe, 3/4 NPT

1шт.

18

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

19

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

1шт.

20

26512R1

WASHER

- flat, 25/32 x 2 x 11/64 inch (19 x 50 x 4 mm)

1шт.

21

ZA103626

GEAR

- 19 tooth (Cut tooth) (Use only with gear ZA103627) Prior to P.I.N. 001530) (See Note)

1шт.

21

ZA105433

GEAR

- 19 tooth (Forged) (Used only with gear ZA105434) (P.I.N. 001531 and after) (See Note)

1шт.

22

ZA103638

SHAFT

- pinion (Prior to P.I.N. 001530)

1шт.

22

ZA105688

SHAFT

- pinion (With lock groove for constant velocity PTO shaft) (P.I.N. 001531 and after)

1шт.

23

ZA103722

HOUSING

TUBE - bearing

1шт.

24

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-9/16 OD (65 mm)

1шт.

25

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - bearing, 2.362 OD (60 mm)

1шт.

26

96324C1

OIL SEAL

SESAL - oil, 1-5/8 ID (41 mm)

1шт.

27

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 inch x 1-1/2 inch

8шт.

28

ZA103653

PLUG

- breather - (Replaces 651616R1)

1шт.
