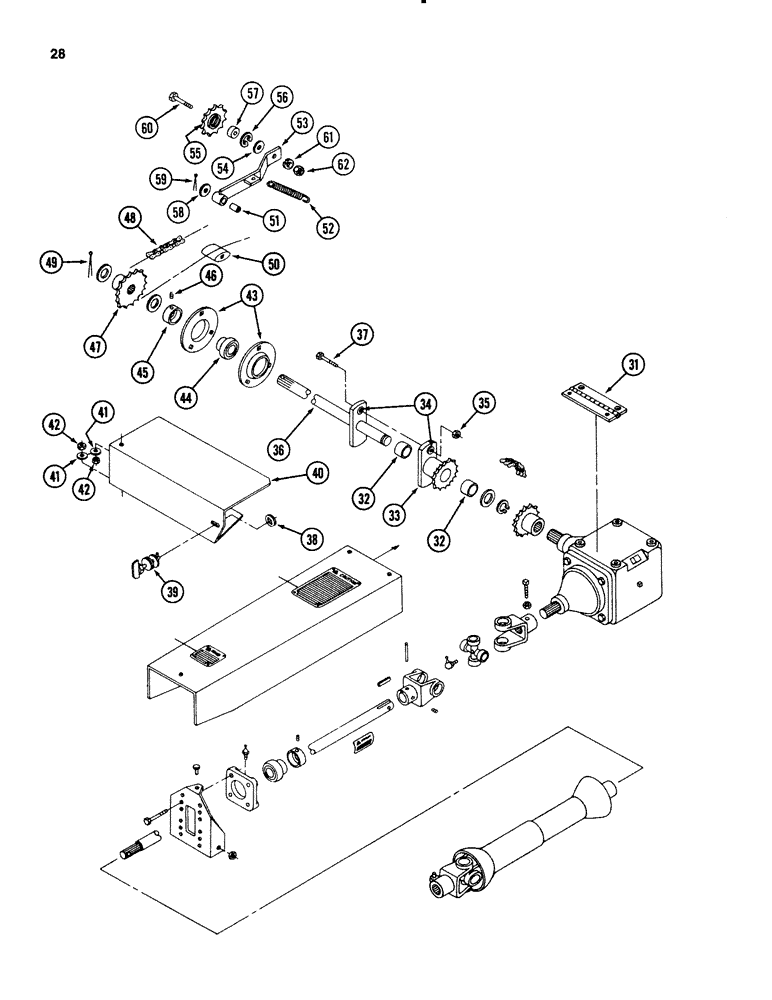

Запчасти Case IH 3650 (28) - POWER TAKE OFF DRIVE, PRIOR TO P.I.N. 001530
№
Артикул
Название
Примечание
Количество
POWER TAKE OFF DRIVE (Continued from Page 27)
1шт.
31
ZA104325
HINGE
1шт.
32
96329C1
BUSHING
2шт.
33
ZA105088
SPROCKET ASSY.
SPROCKET - 16 teeth
1шт.
34
ZA301074
BUSHING
2шт.
35
378531R1
LOCK NUT,1/4"-20, GA
NUT - hex lock, 1/4 inch NC
1шт.
36
ZA105092
SHAFT
- cross
1шт.
37
280112
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
1шт.
38
ZA103937
WASHER
- retaining
2шт.
39
ZA103138
FASTENER
1шт.
40
ZA104403
SHIELD
1шт.
41
106969R1
WASHER
- flat, 11/32 x 1-1/4 x 1/16 inch (8 x 31 x 1 mm)
2шт.
42
9412083
NUT,5/16"-18, GB
NUT - hex lock, 5/16 inch NC
2шт.
43
619333R1
FLANGED BEARING
HOUSING - bearing
2шт.
44
664597R91
BALL BEARING,1.5005" ID x 90 mm OD x 1.625"
1шт.
45
664598R11
COLLAR
WITH SET SCREW
1шт.
46
485-13816
SET SCREW,Sq Hd, 3/8"-16 x 1"
SCREW - set, hex socket headless cup point, 3/8 NF x 1 inch
1шт.
47
ZA104591
SPROCKET ASSY.
SPROCKET - 16 teeth
1шт.
48
NSS
NOT SOLD SEPARAT
CHAIN ASSEMBLY (Use 99 links from roll marked 654437R91, 1 offset link 654439R91 and 1 connecting link 654438R91)
1шт.
654437R91
CHAIN (AG)
CHAIN - 10 foot (3.048 m) roll
1шт.
654438R91
LINK
- connecting
1шт.
654439R91
LINK
- offset
1шт.
49
432-1640
COTTER PIN,1/4" x 2 1/2"
Pin, Split (Cotter), 1/4" x 2 1/2"
1шт.
50
ZA304776
SLIDE
- chain
1шт.
51
96315C1
BRONZE BUSHING
BUSHING
1шт.
52
1281008C1
SPRING
1шт.
53
ZA104649
ARM
1шт.
54
67872C1
WASHER
1шт.
55
ZA740486
SPROCKET ASSY.
SPROCKET - 12 tooth
1шт.
56
1254031C1
RING
- retaining
1шт.
57
133214R91
BEARING LOCK NUT
BEARING
1шт.
58
446257
WASHER,3/4" x 1 3/4" x .148"
- f;at. 13/16 x 1-3/4 x 1/8 inch (20 x 44 x 3 mm)
1шт.
59
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
60
NLS
NO LONGER SERVICED
BOLT - hex, 5/8 NC x 1-3/4 inch
1шт.
61
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
62
280374
NUT,Hex, 5/8" - 11, Gr 5
- hex, 5/18 inch NC
1шт.
Выбрано товаров: 36
