Запчасти Case IH 3650 (24) - WHEEL AND AXLE

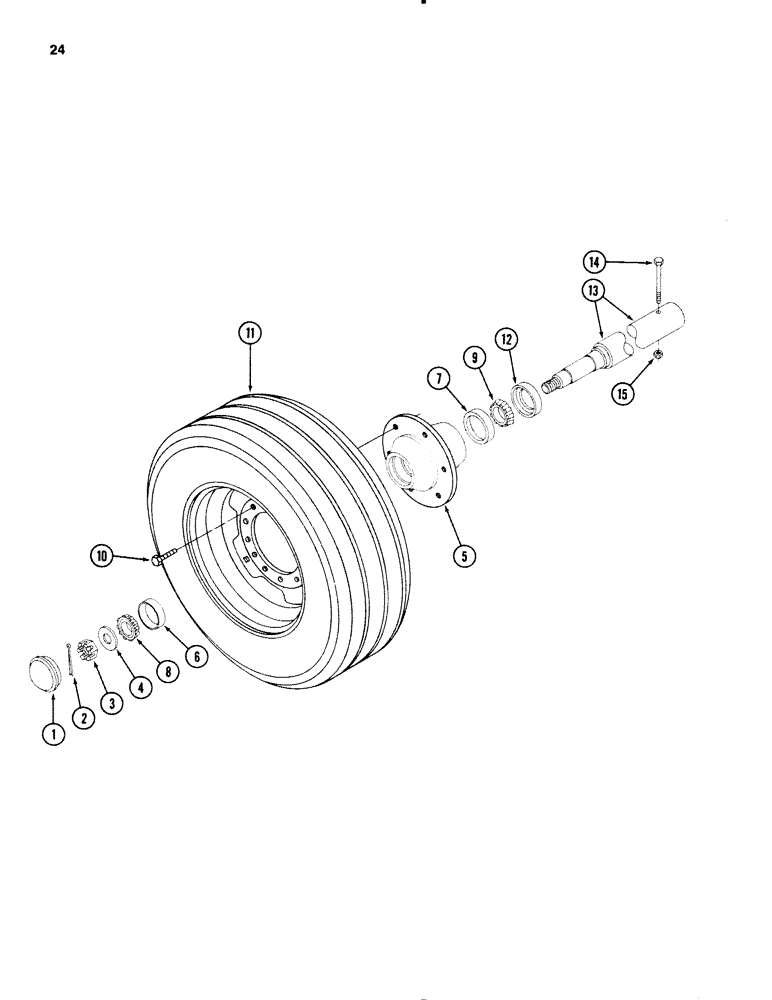

Схема запчастей Case IH 3650 - (24) - WHEEL AND AXLE

Артикул

Название

Примечание

Количество

1

614406R1

CAP

- wheel hub

2шт.

2

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

3

427646

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF

2шт.

4

25539R1

WASHER

WASHER - flat, 15/16 x 1-3/4 x 1/8 inch (23 x 44 x 3 mm)

2шт.

5

ZA625501

HUB

ASSEMBLY

2шт.

6

651817R1

BEARING CUP

CUP - bearings, outer 2-21/64 OD (60 mm)

2шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

7

478793R1

BEARING CUP

CUP - bearings, inner 2-5/8 OD (66 mm)

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearings, outer 1-1/4 ID (31 mm)

2шт.

9

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE - bearings, inner 1-1/2 ID (38 mm)

2шт.

10

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- wheel

12шт.

11

486101R2

RIM

WHEEL - for 11L x 15 tire

2шт.

11

1277504C1

RIM

WHEEL - for 31 x 13.50 floatation tire (Replaces 542957R1)

2шт.

536705R91

VALVE

- inflation, 5/8 inch diameter

2шт.

12

1254019C1

OIL SEAL

SEAL - oil, 2-15/32 od (62 mm)

2шт.

13

ZA103696

SPINDLE

- 14-1/2 inch long

2шт.

14

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch

2шт.

15

9413969

NUT,5/8"-11, GB

- hex lock, 5/8 inch NC

2шт.

Выбрано товаров: 18
