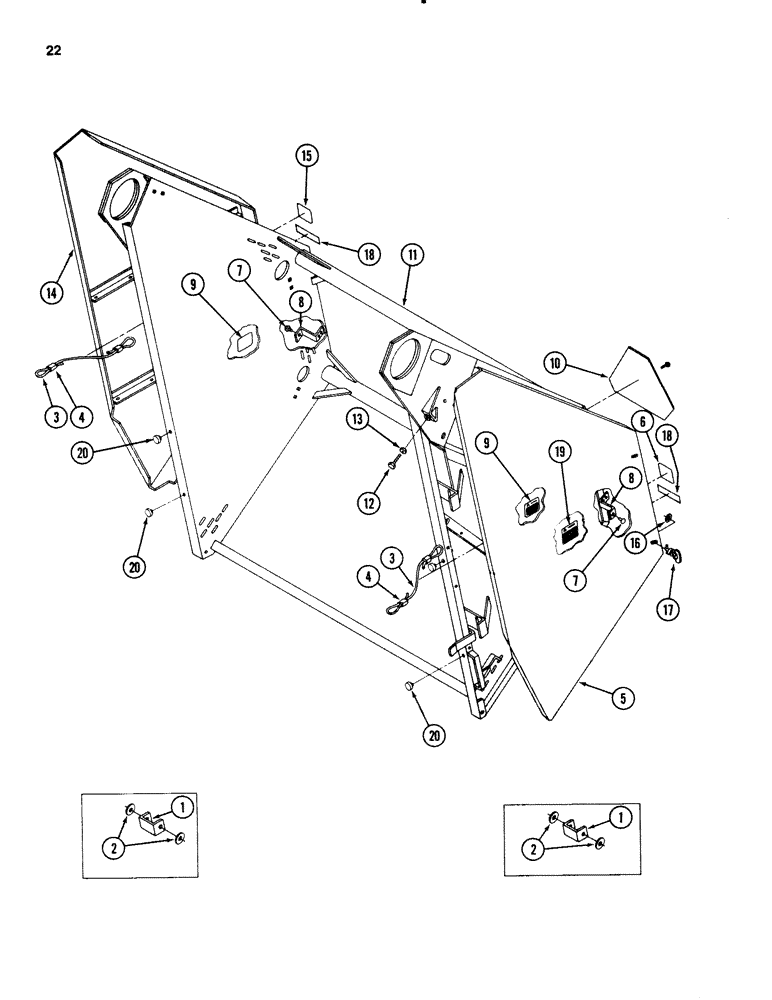

Запчасти Case IH 3650 (22) - TAILGATE FRAME

1

ZA105137

BUMPER

- rubber (Prior to P.I.N. 001179)

2шт.

2

106969R1

WASHER

- flat, 11/32 x 1-3/8 x 1/16 inch (8 x 34 x 1 mm) (Prior to P.I.N. 001179)

4шт.

3

ZA104429

CABLE

2шт.

4

96326C1

SLEEVE

4шт.

5

ZA105182

SHIELD

- rear left

1шт.

6

ZA105196

PRODUCT GRAPHIC

DECAL - warning

1шт.

7

ZA103821

BUMPER

- rubber

2шт.

8

ZA105103

BRACKET

- bumper

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head, square neck, 5/16 NC x 3/4 inch

4шт.

9

ZA740950

DECAL

- shield warning

2шт.

10

NSS

NOT SOLD SEPARAT

EMBLEM - SMV

1шт.

11

ZA104327

HOUSING

- rear

1шт.

12

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

13

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

14

ZA105181

SHIELD

- rear right

1шт.

15

ZA105196

PRODUCT GRAPHIC

DECAL - warning

1шт.

16

ZA103937

WASHER

- retaining

4шт.

17

ZA103138

FASTENER

4шт.

18

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

19

NSS

NOT SOLD SEPARAT

DECAL - important (Order kit 1265869C93)

2шт.

20

535329R1

BUMPER

- rubber (P.I.N. 001180 and after)

4шт.

436525C1

RIVET,Pop, 1/4" x 1/2"

- mandrel, 6.3 x 12.7 mm

1шт.
