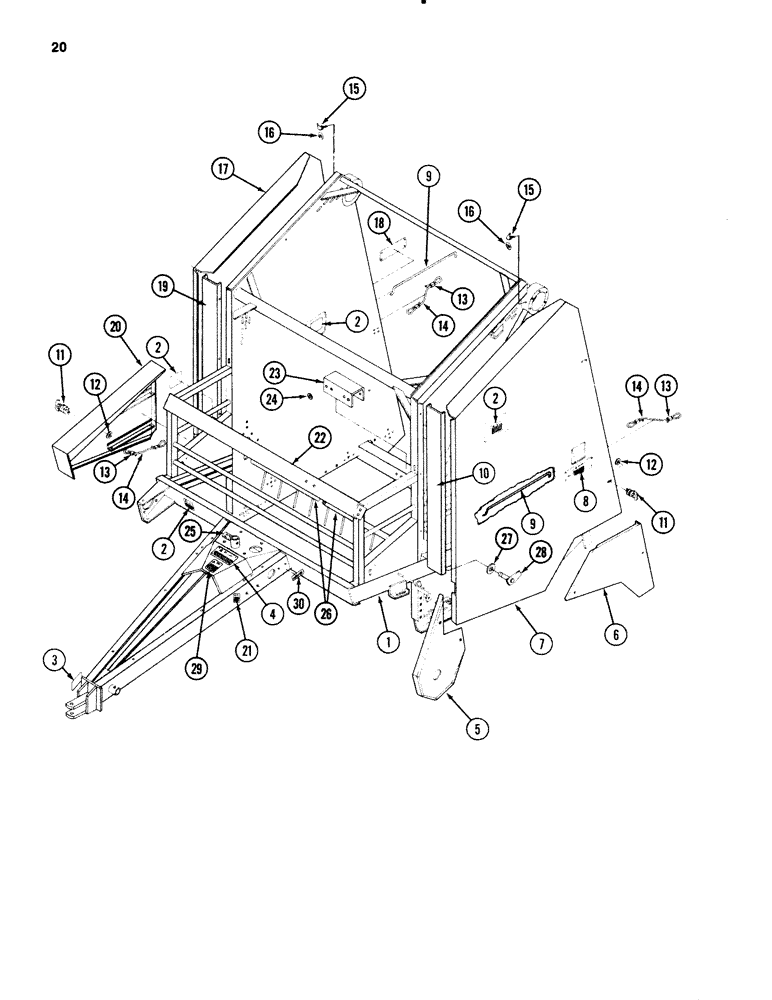

Запчасти Case IH 3650 (20) - MAIN FRAME HOUSING

1

ZA104289

HOUSING

- main frame

1шт.

2

ZA740950

DECAL

- warning

4шт.

3

96319C1

DECAL

- caution

1шт.

4

96330C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

5

ZA104475

SHIELD

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT - round head, square neck, 5/16 NC x 3/4 inch

3шт.

6

ZA105141

SHIELD

- left

1шт.

7

ZA103650

SHIELD

- front left (Replaces 1281040C1)

1шт.

8

ZA104575

PRODUCT GRAPHIC

DECAL - warning

1шт.

9

ZA103822

ROD

- retaining

2шт.

10

ZA104433

SHIELD

- cover front left

1шт.

11

ZA103138

FASTENER

5шт.

12

ZA103937

WASHER

- retaining

10шт.

13

96326C1

SLEEVE

6шт.

14

ZA104429

CABLE

3шт.

15

16964R91

FITTING

- grease, 1/4 inch 90 degree

2шт.

16

NSS

NOT SOLD SEPARAT

DECAL - grease (50 hours) (Order kit 1265869C93)

2шт.

17

ZA103651

SHIELD

- front right (Replaces 1281039C1)

1шт.

18

ZA104576

PRODUCT GRAPHIC

DECAL - warning

1шт.

19

ZA104432

SHIELD

- cover front right

1шт.

20

ZA104346

SHIELD

- drive

1шт.

21

NSS

NOT SOLD SEPARAT

DECAL - important (Order kit 1265869C93)

1шт.

22

ZA104343

CHANNEL

1шт.

23

ZA105351

CHANNEL

- axle splice

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120387

WASHER,3/8" x 3/4" x .060"

NUT - hex, 1/2 inch NC

8шт.

24

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch (13 x 26 x 3 mm)

16шт.

25

NSS

NOT SOLD SEPARAT

DECAL - important (Order kit 1265869C93)

1шт.

26

ZA104814

RETAINER

- crop

1шт.

27

20704R1

WASHER

- flat, 1-1/32 x 1-1/2 x 7/64 inch (26 x 38 x 2 mm)

6шт.

28

ZA105666

SHAFT

PIN

1шт.

29

96332C1

PRODUCT GRAPHIC

DECAL - warning

1шт.

30

NSS

NOT SOLD SEPARAT

DECAL - welger system

1шт.
