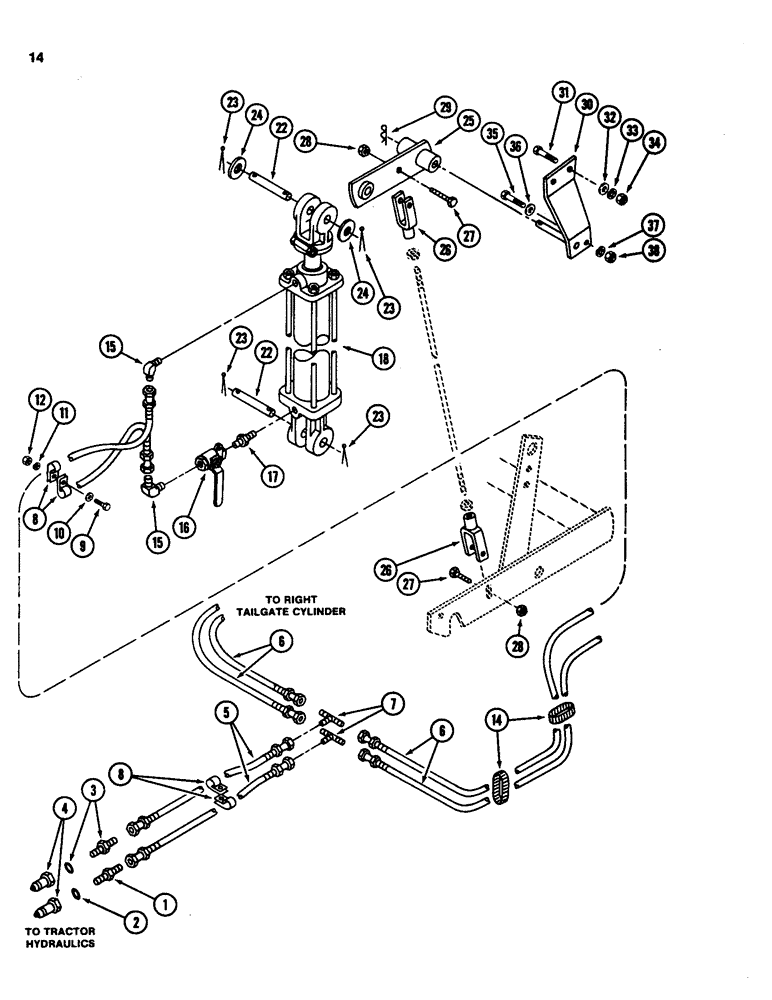

Запчасти Case IH 3640 (14) - TAILGATE HYDRAULICS AND LATCH

1

ZA105685

FITTING

ORIFICE ASSEMBLY - 9/16-18 x 3/4-16 inch, 0.052 inch (1.321 mm) dia.

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

3

REF

INSTRUCTION

CONNECTOR - 3/8 inch tube (See Page 27)

1шт.

4

REF

INSTRUCTION

COUPLING ASSEMBLY - hydraulic (See Page 27)

2шт.

5

129768C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 1/4 ID x 115 inch (6 x 2 921 mm)

2шт.

6

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE ASSEMBLY - 1/4 ID x 105 inch (6 x 2 667 mm)

4шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

- 3/8 inch tube

2шт.

8

27291R1

CLAMP

- tube

16шт.

9

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

8шт.

10

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1 mm)

8шт.

11

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

12

120376

NUT,5/16"-18, G5

8шт.

14

ZA105118

GUIDE

- hose

4шт.

15

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 3/8 tube x 3/8 inch PT, 90 degree

4шт.

16

ZA103758

VALVE

- rotary

2шт.

17

443981

CONNECTOR, ELEC

NIPPLE - pipe, 3/8 inch PT

2шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, tailgate (See Page 19)

2шт.

22

63196C1

PIN

- clevis

4шт.

23

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

8шт.

24

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 1/16 inch (26 x 38 x 2 mm)

8шт.

25

ZA105122

ARM

- latch rod

2шт.

26

ZA250536

YOKE

- latch rod

2шт.

27

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

28

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

29

407210R1

CLIP

PIN - hair (Package of 20)

2шт.

30

ZA105126

PIN

ASSEMBLY - arm, left (Shown)

1шт.

30

ZA105125

PIN

ASSEMBLY - arm, right

1шт.

31

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

32

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch (10 x 32 x 2 mm)

4шт.

33

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

34

120377

NUT,3/8" - 16, Gr 5

4шт.

35

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

36

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch (10 x 32 x 2 mm)

2шт.

37

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

38

120377

NUT,3/8" - 16, Gr 5

2шт.
