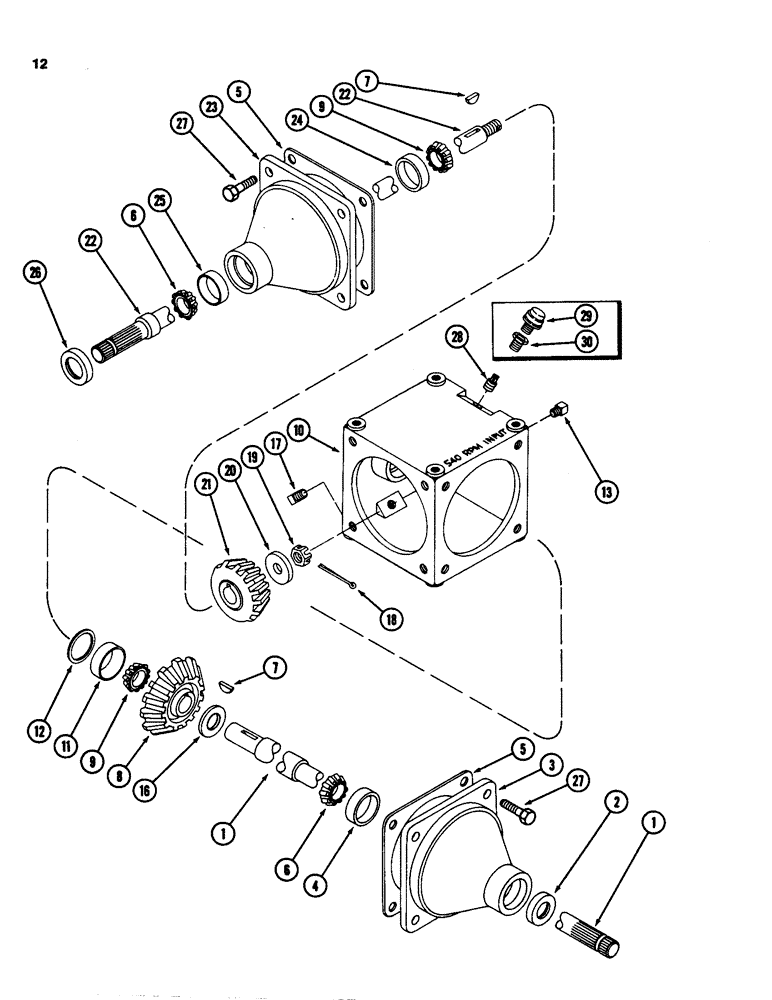

Запчасти Case IH 3640 (12) - GEARBOX

1

ZA105687

SHAFT

- for 26 tooth gear (With lock groove for constant velocity PTO shaft)

1шт.

2

96325C1

OIL SEAL

SEAL - oil

1шт.

3

ZA103721

TUBE

- bearing

1шт.

4

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - bearing

1шт.

5

96342C1

SHIM

- 0.005 inch (0.127 mm)

4шт.

5

96343C1

SHIM

- 0.020 inch (0.508 mm)

4шт.

6

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

CONE - bearing

2шт.

7

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY - Woodruff, No. B, 5/16 x 1 inch

2шт.

8

ZA105434

GEAR

- 26 tooth, forged

1шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing

2шт.

10

ZA103720

BOX

HOUSING ASSEMBLY - gearbox

1шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

12

96344C1

SHIM

- 0.005 inch (0.127 mm)

2шт.

12

96345C1

SHIM

- 0.020 inch (0.508 mm)

1шт.

13

9617020

PLUG,1/4" - 18 x 0.48"

- pipe, Hex Socket, 1/4 inch PT

1шт.

16

ZA104574

WASHER

- chamfered

1шт.

17

20969R1

PLUG

- pipe, square head, 3/4 inch PT

1шт.

18

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

19

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF

1шт.

20

26512R1

WASHER

- flat, 25/32 x 2 x 11/64 inch (20 x 51 x 4 mm)

1шт.

21

ZA105433

GEAR

- 19 tooth, forged

1шт.

22

ZA105688

SHAFT

- for 19 tooth gear (With lock groove for constant velocity PTO shaft)

1шт.

23

ZA103722

HOUSING

TUBE - bearing

1шт.

24

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

25

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - bearing

1шт.

26

96324C1

OIL SEAL

SEAL - oil

1шт.

27

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

8шт.

28

ZA103653

PLUG

- breather (Replaces 651616R1)

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG - breather (Order ZA103653)

1шт.

30

27327R1

BUSHING - pipe, 1/2 PT x 3/4 inch PT

1шт.
