Запчасти Case IH 3640 (10) - DRIVE SHAFT, CONSTANT VELOCITY (BONDIOLI AND PAVESI)

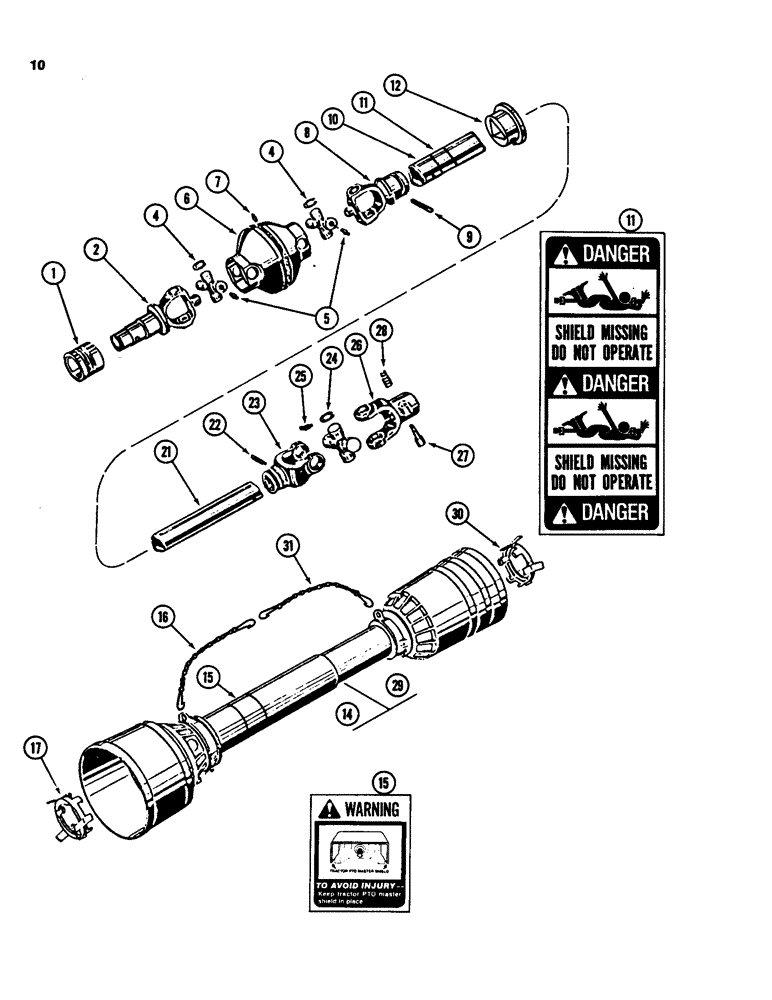

Схема запчастей Case IH 3640 - (10) - DRIVE SHAFT, CONSTANT VELOCITY (BONDIOLI AND PAVESI)

Артикул

Название

Примечание

Количество

ZA105873

JOINT

DRIVE SHAFT ASSEMBLY - constant velocity, tractor half, 540 rpm (Includes Ref. 1 through 17)

1шт.

ZA105874

JOINT

DRIVE SHAFT ASSEMBLY - constant velocity, tractor half, 1000 rpm

1шт.

1

ZA210317

COLLAR

- slide

1шт.

2

ZA105851

YOKE

- 540 rpm

1шт.

2

ZA105852

YOKE

- 1000 rpm

1шт.

ZA105853

KIT

- cross, front

2шт.

4

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

5

ZA210321

NIPPLE, LUBE

FITTING - grease

2шт.

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle (Not shown)

4шт.

6

ZA105856

BODY

- central

1шт.

7

ZA210321

NIPPLE, LUBE

FITTING - grease

1шт.

8

NSS

NOT SOLD SEPARAT

YOKE - outer shaft (Order complete assembly)

1шт.

9

ZA105858

PIN

- roll

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - outer (Order complete assembly)

1шт.

11

REF

INSTRUCTION

DECAL - danger, shield missing (See Page 71)

1шт.

12

ZA105855

RING

- grease

1шт.

14

ZA105868

SHIELD

ASSEMBLY - outer

1шт.

15

REF

INSTRUCTION

DECAL - warning, tractor PTO master shield (See Page 69)

1шт.

16

ZA105864

CHAIN (AG)

CHAIN - shield

1шт.

17

ZA105865

BEARING

- outer shield

1шт.

ZA105876

JOINT

DRIVE SHAFT ASSEMBLY - constant velocity, implement half

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - inner (Order ZA105876)

1шт.

22

ZA105861

PIN

- roll

1шт.

23

NSS

NOT SOLD SEPARAT

YOKE - inner shaft (Order ZA105876)

1шт.

ZA105879

KIT

- cross rear

1шт.

24

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

25

ZA210343

NIPPLE, LUBE

FITTING - grease

1шт.

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle (Not shown)

4шт.

26

ZA105863

YOKE

- rear, quick disconnect

1шт.

ZA210331

PIN

KIT - push pin

1шт.

27

NSS

NOT SOLD SEPARAT

PIN - push

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING - push pin

1шт.

29

ZA105870

SHIELD

ASSEMBLY - inner

1шт.

30

ZA105866

BEARING

- inner shield

1шт.

31

ZA105864

CHAIN (AG)

CHAIN - shield

1шт.

Выбрано товаров: 35
